RB22P04C10B

Active

Serpac

BOX PLAS /CLR 2.050"L X 1.97"W

Search across all available documentation for this part.

Active

Serpac

BOX PLAS /CLR 2.050"L X 1.97"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB22P04C10B

Color	Black, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	1.38 in
Height [z]	35.05 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	52.07 mm
Size / Dimension [x]	2.05 "
Size / Dimension [y]	50.04 mm
Size / Dimension [y]	1.97 "
Thickness	0.12 in
Thickness	3.05 mm

Part	Height [z]	Height [z]	Container Type	Material Flammability Rating	Material	Ratings	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Thickness	Color
Serpac RB22P04C10G	1.38 in	35.05 mm	Box	UL94 V-0	Plastic Polycarbonate	IP67 NEMA 4	Cover Included	52.07 mm	50.04 mm	2.05 "	1.97 "	0.12 in	3.05 mm	Clear Cover/Door Gray
Serpac RB22P04C10B	1.38 in	35.05 mm	Box	UL94 V-0	Plastic Polycarbonate	IP67 NEMA 4	Cover Included	52.07 mm	50.04 mm	2.05 "	1.97 "	0.12 in	3.05 mm	Black Clear Cover/Door
Serpac RB22P04C10C	1.38 in	35.05 mm	Box	UL94 V-0	Plastic Polycarbonate	IP67 NEMA 4	Cover Included	52.07 mm	50.04 mm	2.05 "	1.97 "	0.12 in	3.05 mm	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

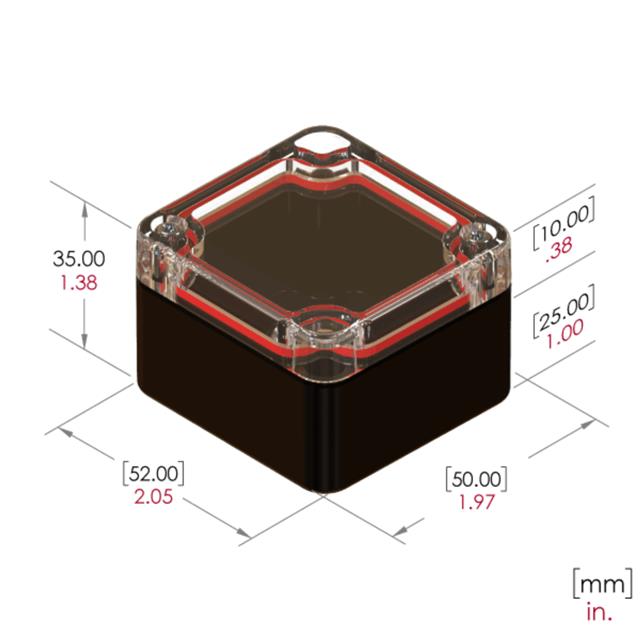

Box Plastic, Polycarbonate Black, Clear Cover/Door Cover Included 2.050" L x 1.970" W (52.07mm x 50.04mm) X 1.380" (35.05mm)

Technical documentation and resources

No documents available
