0191960041

Active

Molex

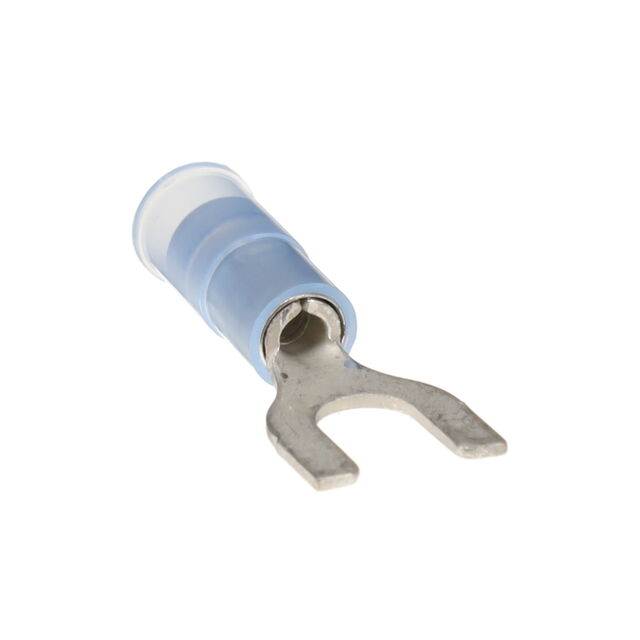

SPADE AVIKRIMP (B-527-10)

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191960041

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Length - Overall [x]	26.97 mm
Length - Overall [x]	1.062 in
Length - Ring Center to Termination [x]	0.269 in
Length - Ring Center to Termination [x]	6.83 mm
Length - Termination	0.546 in
Length - Termination	13.87 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	5.03 mm
Tongue Inside Opening [x]	0.198 in
Width - Outer Edges [x]	0.388 in
Width - Outer Edges [x]	9.86 mm

019196 Series

Part	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Terminal Type	Material - Insulation	Insulation	Stud/Tab Size	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Termination	Mounting Type	Length - Termination	Length - Termination	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall	Length - Ring Center to Termination	Length - Ring Center to Termination
Molex 0191960041	Copper	5.03 mm	0.198 in	Standard	Nylon Polyamide (PA)	Insulated	10 Stud	Blue	0.388 in	9.86 mm	26.97 mm	1.062 in	Electro-Tin	0.269 in	6.83 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm
Molex 0191960007						Insulated										Crimp				8 Stud
Molex 0191960037	Copper	3.71 mm	0.146 in	Standard	Nylon Polyamide (PA)	Insulated	6 Stud	Blue			26.97 mm	1.062 in	Electro-Tin	0.269 in	6.83 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm		9.19 mm	0.362 "
Molex 0191960005						Insulated	6 Stud									Crimp
Molex 0191960034	Copper	4.39 mm	0.173 in	Standard	Nylon Polyamide (PA)	Insulated		Blue	0.295 in	7.49 mm	23.55 mm	0.927 in	Electro-Tin	0.211 in	5.36 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm	8 Stud
Molex 0191960039	Copper	4.39 mm	0.173 in	Standard	Nylon Polyamide (PA)	Insulated		Blue			26.97 mm	1.062 in	Electro-Tin	0.269 in	6.83 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm	8 Stud	9.19 mm	0.362 "
Molex 0191960068	Copper	5.03 mm	0.198 in	Standard	Nylon Polyamide (PA)	Insulated	10 Stud	Yellow	0.375 in	9.53 mm	31.29 mm	1.232 in	Electro-Tin	0.301 in	7.65 mm	Crimp	Free Hanging (In-Line)	0.669 in	16.99 mm				5.72 mm	0.225 "	12 AWG	10 AWG
Molex 0191960026	Copper	3.71 mm	0.146 in	Standard	Nylon Polyamide (PA)	Insulated	6 Stud	Blue	0.245 in	6.22 mm		0.93 in	Electro-Tin			Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm								23.62 mm	0.209 in	5.31 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.32
		10	$ 0.27
		25	$ 0.26
		50	$ 0.24
		100	$ 0.23
		250	$ 0.22
		500	$ 0.21
		1000	$ 0.20
		3000	$ 0.18

Description

General part information

019196 Series

Blue 10 Stud Spade Terminal Connector Crimp 14-16 AWG
