0191960007

Active

Molex

CONN SPADE TERM #8

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191960007

Insulation	Insulated
Stud/Tab Size	8 Stud
Termination	Crimp

019196 Series

Part	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Terminal Type	Material - Insulation	Insulation	Stud/Tab Size	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Termination	Mounting Type	Length - Termination	Length - Termination	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall	Length - Ring Center to Termination	Length - Ring Center to Termination
Molex 0191960041	Copper	5.03 mm	0.198 in	Standard	Nylon Polyamide (PA)	Insulated	10 Stud	Blue	0.388 in	9.86 mm	26.97 mm	1.062 in	Electro-Tin	0.269 in	6.83 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm
Molex 0191960007						Insulated										Crimp				8 Stud
Molex 0191960037	Copper	3.71 mm	0.146 in	Standard	Nylon Polyamide (PA)	Insulated	6 Stud	Blue			26.97 mm	1.062 in	Electro-Tin	0.269 in	6.83 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm		9.19 mm	0.362 "
Molex 0191960005						Insulated	6 Stud									Crimp
Molex 0191960034	Copper	4.39 mm	0.173 in	Standard	Nylon Polyamide (PA)	Insulated		Blue	0.295 in	7.49 mm	23.55 mm	0.927 in	Electro-Tin	0.211 in	5.36 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm	8 Stud
Molex 0191960039	Copper	4.39 mm	0.173 in	Standard	Nylon Polyamide (PA)	Insulated		Blue			26.97 mm	1.062 in	Electro-Tin	0.269 in	6.83 mm	Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm	8 Stud	9.19 mm	0.362 "
Molex 0191960068	Copper	5.03 mm	0.198 in	Standard	Nylon Polyamide (PA)	Insulated	10 Stud	Yellow	0.375 in	9.53 mm	31.29 mm	1.232 in	Electro-Tin	0.301 in	7.65 mm	Crimp	Free Hanging (In-Line)	0.669 in	16.99 mm				5.72 mm	0.225 "	12 AWG	10 AWG
Molex 0191960026	Copper	3.71 mm	0.146 in	Standard	Nylon Polyamide (PA)	Insulated	6 Stud	Blue	0.245 in	6.22 mm		0.93 in	Electro-Tin			Crimp	Free Hanging (In-Line)	0.546 in	13.87 mm								23.62 mm	0.209 in	5.31 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.64
		10	$ 0.54
		100	$ 0.42
		1000	$ 0.33
		3000	$ 0.30

Description

General part information

019196 Series

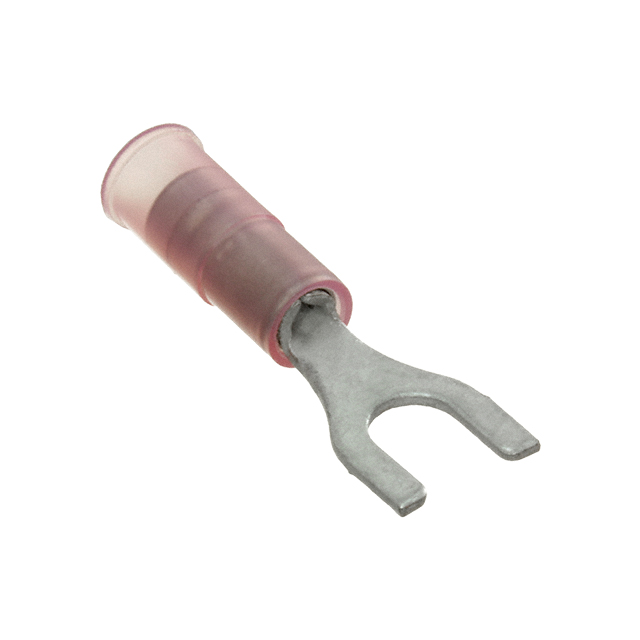

8 Stud Spade Terminal Connector Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
