MX34020SF1

Active

JAE Electronics

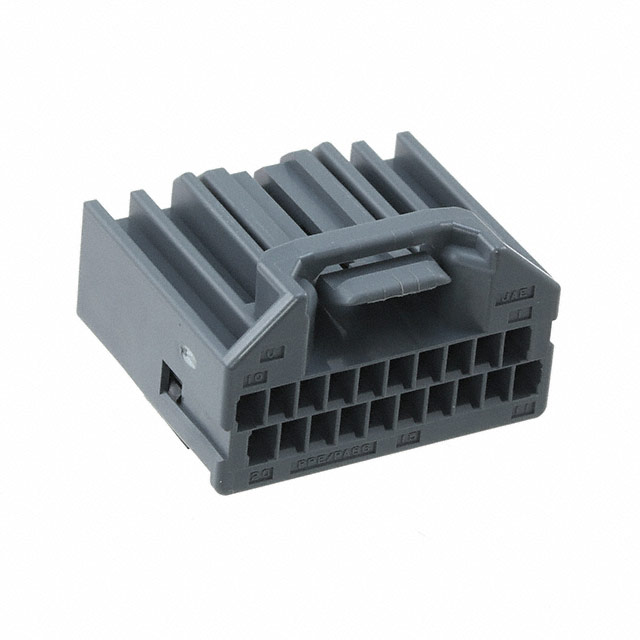

CONN RCPT HSG 20POS 2.20MM

Deep-Dive with AI

DocumentsTransportation Guide MX34 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX34020SF1

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

MX340 Series

Part	Number of Positions	Note	Number of Rows	Contact Termination	Mounting Type	Contact Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Pitch [x]	Pitch [x]	Fastening Type	Row Spacing [x]	Row Spacing [x]
JAE Electronics MX34028SF1	28	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Black	0.087 in	2.2 mm	Latch Holder
JAE Electronics MX34008SF4	8	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Blue	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34036SF4	36	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Black	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34012SF4	12	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Blue	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34005SF1		Contacts Not Included	1	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm
JAE Electronics MX34017SFA		Contacts Not Included		Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm
JAE Electronics MX34032SF4		Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Blue	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34040SF1	40	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm		0.118 in	3 mm
JAE Electronics MX34003SF1		Contacts Not Included	1	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm
JAE Electronics MX34020SF1	20	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm		0.118 in	3 mm
