MX34028SF1

Active

JAE Electronics

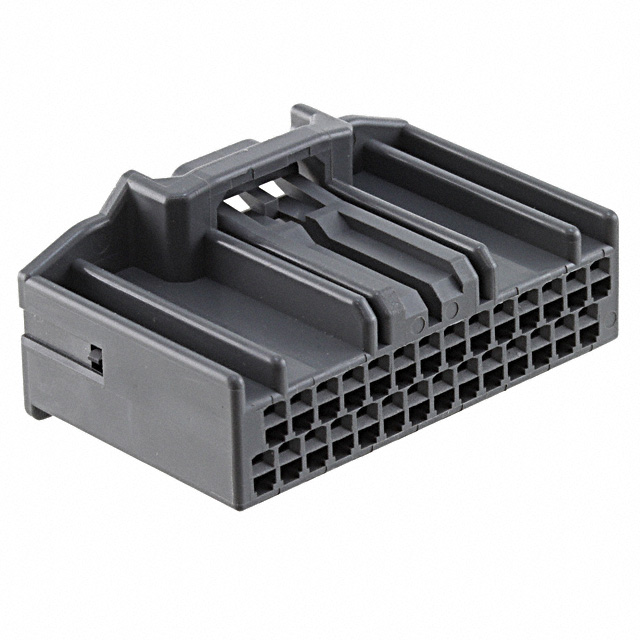

CONN RCPT HSG 28POS 2.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Transportation Guide

MX34028SF1

Active

JAE Electronics

CONN RCPT HSG 28POS 2.20MM

Deep-Dive with AI

DocumentsDatasheet Transportation Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX34028SF1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	28
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm

MX340 Series

Part	Number of Positions	Note	Number of Rows	Contact Termination	Mounting Type	Contact Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Pitch [x]	Pitch [x]	Fastening Type	Row Spacing [x]	Row Spacing [x]
JAE Electronics MX34028SF1	28	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Black	0.087 in	2.2 mm	Latch Holder
JAE Electronics MX34008SF4	8	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Blue	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34036SF4	36	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Black	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34012SF4	12	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Blue	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34005SF1		Contacts Not Included	1	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm
JAE Electronics MX34017SFA		Contacts Not Included		Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm
JAE Electronics MX34032SF4		Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Blue	0.087 in	2.2 mm	Latch Holder	0.118 in	3 mm
JAE Electronics MX34040SF1	40	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm		0.118 in	3 mm
JAE Electronics MX34003SF1		Contacts Not Included	1	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm
JAE Electronics MX34020SF1	20	Contacts Not Included	2	Crimp	Free Hanging (In-Line)	Female Socket	Polyamide (PA66) Nylon 6/6	85 °C	-40 °C	Receptacle	Gray	0.087 in	2.2 mm		0.118 in	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.00
		10	$ 0.84
		25	$ 0.81
		40	$ 0.79
		80	$ 0.76
		432	$ 0.69
		864	$ 0.60
		1296	$ 0.55
		2592	$ 0.50

Description

General part information

MX340 Series

28 Rectangular Connectors - Housings Receptacle Black 0.087" (2.20mm)

Documents

Technical documentation and resources

Datasheet

Transportation Guide

Datasheet
