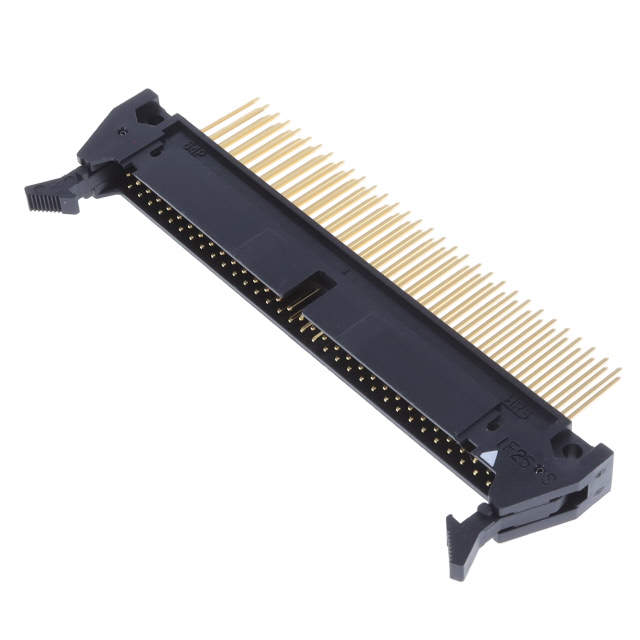

HIF3BB-64P-2.54W(63)

LTB

Hirose Electric USA, Inc.

RIBBON CABLE CONNECTORS COMPLIANT WITH MIL-C-83503 STANDARD

Deep-Dive with AI

Search across all available documentation for this part.

HIF3BB-64P-2.54W(63)

LTB

Hirose Electric USA, Inc.

RIBBON CABLE CONNECTORS COMPLIANT WITH MIL-C-83503 STANDARD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3BB-64P-2.54W(63)

Connector Type	Header
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.701 "
Insulation Height	17.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Wire Wrap
Voltage Rating	200 V

HIF3BB Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Cable Termination	Wire Gauge	Row Spacing [x]	Row Spacing	Mounting Type	Connector Type	Wire Type	Contact Type	Color	Features	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Current Rating (Amps)	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Insulation Height	Insulation Height	Shrouding	Voltage Rating	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Termination	Note
Hirose Electric USA, Inc. HIF3BB-60D-2.54R(63)	7.87 µin	0.2 µm	60	IDC	28 AWG	0.1 in	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable	Female Socket	Black	Feed Through Polarizing Key Strain Relief	Gold	2.54 mm	0.1 in	2
Hirose Electric USA, Inc. HIF3BB-64P-2.54W(63)			64					Through Hole	Header		Male Pin		Keying Slot				2	Varies by Wire Gauge	Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Wire Wrap	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF3BB-60PA-2.54DS(63)			60					Through Hole Right Angle	Header		Male Pin						2	Varies by Wire Gauge	Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.335 "	8.51 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.118 in	3 mm
Hirose Electric USA, Inc. HIF3BB-50PA-2.54DSA(71)			50					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.13 in	3.3 mm	16.7 mm	0.657 in	6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BB-64PA-2.54WB(71)			64					Through Hole Right Angle	Header		Male Pin						2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.335 "	8.51 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.118 in	3 mm			6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BB-60PA-2.54DSA(71)			60					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.13 in	3.3 mm	16.7 mm	0.657 in	6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BB-64P-2.54W			64					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Wire Wrap	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold			0.203 Ám	8 Áin				26.5 mm	1.043 in	6 mm	0.236 in	0.516 in	13.1 mm
Hirose Electric USA, Inc. HIF3BB-50D-2.54C(63)			50			0.1 in	2.54 mm	Free Hanging (In-Line)	Socket		Female Socket	Black	Polarizing Key		2.54 mm	0.1 in	2										85 °C	-55 °C									Polybutylene Terephthalate (PBT)															Crimp	Contacts Not Included
Hirose Electric USA, Inc. HIF3BB-64D-2.54R			64	IDC	28 AWG	0.1 in	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable	Female Socket	Black	Feed Through Polarizing Key Strain Relief	Gold	2.54 mm	0.1 in	2
Hirose Electric USA, Inc. HIF3BB-50P-2.54W			50					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Wire Wrap	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold			0.203 Ám	8 Áin				26.5 mm	1.043 in	6 mm	0.236 in	0.516 in	13.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.40
		10	$ 13.94
		100	$ 11.85
		500	$ 10.58
	Tray	80	$ 12.77
		440	$ 10.78
		945	$ 10.08
Newark	Each	1	$ 18.26
		100	$ 16.12

Description

General part information

HIF3BB Series

Connector Header Through Hole 64 position 0.100" (2.54mm)
