HIF3BB-60D-2.54R(63)

Active

Hirose Electric USA, Inc.

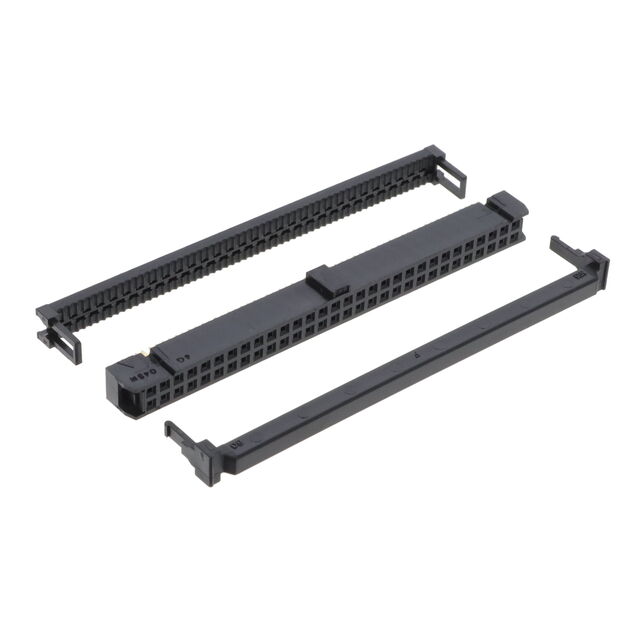

CONN SOCKET 60POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3BB-60D-2.54R(63)

Active

Hirose Electric USA, Inc.

CONN SOCKET 60POS IDC 28AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3BB-60D-2.54R(63)

Cable Termination	IDC
Color	Black
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	7.87 µin
Contact Finish Thickness	0.2 µm
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	60
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

HIF3BB Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Cable Termination	Wire Gauge	Row Spacing [x]	Row Spacing	Mounting Type	Connector Type	Wire Type	Contact Type	Color	Features	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Current Rating (Amps)	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Insulation Height	Insulation Height	Shrouding	Voltage Rating	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Termination	Note
Hirose Electric USA, Inc. HIF3BB-60D-2.54R(63)	7.87 µin	0.2 µm	60	IDC	28 AWG	0.1 in	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable	Female Socket	Black	Feed Through Polarizing Key Strain Relief	Gold	2.54 mm	0.1 in	2
Hirose Electric USA, Inc. HIF3BB-64P-2.54W(63)			64					Through Hole	Header		Male Pin		Keying Slot				2	Varies by Wire Gauge	Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Wire Wrap	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF3BB-60PA-2.54DS(63)			60					Through Hole Right Angle	Header		Male Pin						2	Varies by Wire Gauge	Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.335 "	8.51 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.118 in	3 mm
Hirose Electric USA, Inc. HIF3BB-50PA-2.54DSA(71)			50					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.13 in	3.3 mm	16.7 mm	0.657 in	6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BB-64PA-2.54WB(71)			64					Through Hole Right Angle	Header		Male Pin						2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.335 "	8.51 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.118 in	3 mm			6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BB-60PA-2.54DSA(71)			60					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Solder	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold	2 çm	78.7 çin	0.203 Ám	8 Áin	Tin	0.13 in	3.3 mm	16.7 mm	0.657 in	6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BB-64P-2.54W			64					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Wire Wrap	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold			0.203 Ám	8 Áin				26.5 mm	1.043 in	6 mm	0.236 in	0.516 in	13.1 mm
Hirose Electric USA, Inc. HIF3BB-50D-2.54C(63)			50			0.1 in	2.54 mm	Free Hanging (In-Line)	Socket		Female Socket	Black	Polarizing Key		2.54 mm	0.1 in	2										85 °C	-55 °C									Polybutylene Terephthalate (PBT)															Crimp	Contacts Not Included
Hirose Electric USA, Inc. HIF3BB-64D-2.54R			64	IDC	28 AWG	0.1 in	2.54 mm	Free Hanging (In-Line)	Socket	Ribbon Cable	Female Socket	Black	Feed Through Polarizing Key Strain Relief	Gold	2.54 mm	0.1 in	2
Hirose Electric USA, Inc. HIF3BB-50P-2.54W			50					Through Hole	Header		Male Pin		Keying Slot				2		Board to Cable/Wire	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Wire Wrap	Black	2.54 mm	0.1 in	85 °C	-55 °C	Brass	All	UL94 V-0	Square	0.701 "	17.8 mm	Shrouded - 4 Wall	200 V	Polybutylene Terephthalate (PBT)	Gold			0.203 Ám	8 Áin				26.5 mm	1.043 in	6 mm	0.236 in	0.516 in	13.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.36
		40	$ 6.97
		80	$ 6.62
		440	$ 5.58
		960	$ 4.88

Description

General part information

HIF3BB Series

60 Position Rectangular Socket Connector IDC Gold 28 AWG
