HR34B-12WLPK-10S
ActiveHirose Electric USA, Inc.

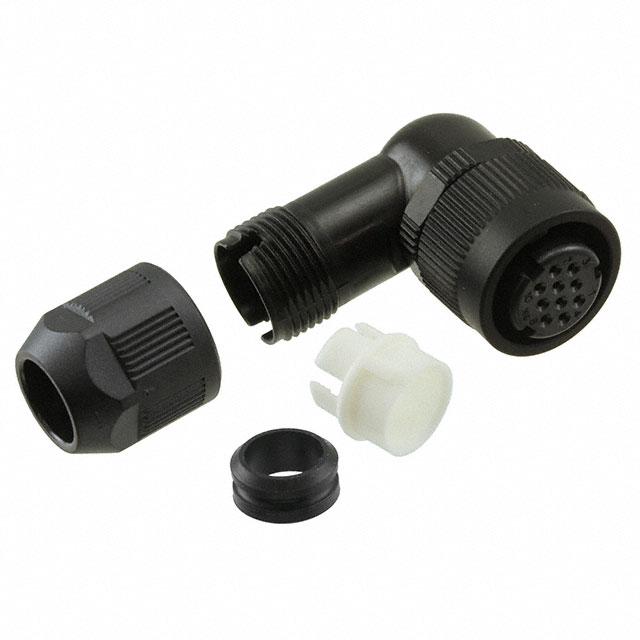

CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
HR34B-12WLPK-10S
ActiveHirose Electric USA, Inc.
CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HR34B-12WLPK-10S |
|---|---|
| Applications | Telecommunications |
| Backshell Material, Plating | Aluminum Alloy, Black Chromate |
| Cable Opening [diameter] | 9 mm |
| Cable Opening [diameter] | 8 mm |
| Cable Opening [diameter] | 0.315 in, 0.354 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 3 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Coupling Nut, Strain Relief, Rotatable |
| Ingress Protection | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 12 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC, 200 VAC |
HR34B Series
| Part | Applications | Insert Material | Shell Finish | Primary Material | Number of Positions | Mounting Type | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Backshell Material, Plating | Connector Type | Contact Material | Ingress Protection | Contact Finish - Mating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Voltage Rating | Current Rating (Amps) | Shell Size - Insert | Orientation | Color | Fastening Type | Shielding | Contact Shape | Type | Contact Type | Note | Housing Color | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Telecommunications | Polyphenylene Sulfide (PPS) | Chrome | Metal | 10 | Free Hanging (In-Line) Right Angle | 9 mm | 8 mm | 0.315 in 0.354 in | Aluminum Alloy Black Chromate | Female Sockets Plug | Phosphor Bronze | IP67F/IP68F - Dust Tight Oil Resistant Waterproof | Gold | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | 0.203 Ám | 8 Áin | Backshell Coupling Nut Rotatable Strain Relief | 200 VAC 250 VDC | 3 A | 12 | N | Black | Bayonet Lock | Unshielded | ||||||||||||
Hirose Electric USA, Inc. | Polyphenylene Sulfide (PPS) | Chrome | 10 | Free Hanging (In-Line) Right Angle | Plug Housing | IP67/IP68 - Dust Tight Waterproof | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | Backshell Coupling Nut Rotatable Strain Relief | 12 | N | Bayonet Lock | Unshielded | Circular | For Female Sockets | Crimp | Contacts Not Included | Black | ||||||||||||||||||||
Hirose Electric USA, Inc. | Telecommunications | Polyphenylene Sulfide (PPS) | Chrome | Metal | 4 | Free Hanging (In-Line) Right Angle | Nylon Polyamide (PA) | Female Sockets Plug | Copper Alloy | IP67F/IP68F - Dust Tight Oil Resistant Waterproof | Silver | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | 2 µm | 78.7 µin | Backshell Coupling Nut Rotatable Strain Relief | 5 A | 12 | N | Black | Bayonet Lock | Unshielded | 5.7 mm | 0.224 in 0.256 in | 6.5 mm | |||||||||||||
Hirose Electric USA, Inc. | Telecommunications | Polyphenylene Sulfide (PPS) | Chrome | Metal | 4 | Free Hanging (In-Line) | Nylon Polyamide (PA) | Female Sockets Plug | Copper Alloy | IP67F/IP68F - Dust Tight Oil Resistant Waterproof | Silver | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | 2 µm | 78.7 µin | 5 A | 12 | X | Black | Bayonet Lock | Unshielded | 0.256 in | 6.5 mm | 0.287 in | 7.3 mm | |||||||||||||
Hirose Electric USA, Inc. | Polyphenylene Sulfide (PPS) | Chrome | 10 | Free Hanging (In-Line) Right Angle | Plug Housing | IP67/IP68 - Dust Tight Waterproof | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | Backshell Coupling Nut Rotatable Strain Relief | 12 | N | Bayonet Lock | Unshielded | Circular | For Female Sockets | Crimp | Contacts Not Included | Black | ||||||||||||||||||||
Hirose Electric USA, Inc. | Polyphenylene Sulfide (PPS) | Chrome | 10 | Free Hanging (In-Line) Right Angle | Plug Housing | IP67/IP68 - Dust Tight Waterproof | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | Backshell Coupling Nut Rotatable Strain Relief | 12 | N | Bayonet Lock | Unshielded | Circular | For Female Sockets | Crimp | Contacts Not Included | Black | ||||||||||||||||||||
Hirose Electric USA, Inc. | Polyphenylene Sulfide (PPS) | Chrome | 10 | Free Hanging (In-Line) | Plug Housing | IP67/IP68 - Dust Tight Waterproof | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | 12 | N | Bayonet Lock | Unshielded | Circular | For Female Sockets | Crimp | Contacts Not Included | Black | |||||||||||||||||||||
Hirose Electric USA, Inc. | Telecommunications | Polyphenylene Sulfide (PPS) | Chrome | Metal | 4 | Free Hanging (In-Line) Right Angle | Nylon Polyamide (PA) | Female Sockets Plug | Copper Alloy | IP67F/IP68F - Dust Tight Oil Resistant Waterproof | Silver | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | 2 µm | 78.7 µin | Backshell Coupling Nut Rotatable Strain Relief | 5 A | 12 | X | Black | Bayonet Lock | Unshielded | 0.256 in | 6.5 mm | 0.287 in | 7.3 mm | ||||||||||||
Hirose Electric USA, Inc. | Telecommunications | Polyphenylene Sulfide (PPS) | Chrome | Metal | 10 | Free Hanging (In-Line) | Nylon Polyamide (PA) | Female Sockets Plug | Phosphor Bronze | IP67F/IP68F - Dust Tight Oil Resistant Waterproof | Gold | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | 0.203 Ám | 8 Áin | 200 VAC 250 VDC | 3 A | 12 | N | Black | Bayonet Lock | Unshielded | 0.256 in | 6.5 mm | 0.287 in | 7.3 mm | ||||||||||||
Hirose Electric USA, Inc. | Polyphenylene Sulfide (PPS) | Chrome | 10 | Free Hanging (In-Line) Right Angle | Plug Housing | IP67/IP68 - Dust Tight Waterproof | UL94 V-0 | 125 °C | -25 °C | Zinc Alloy | Backshell Coupling Nut Rotatable Strain Relief | 12 | N | Bayonet Lock | Unshielded | Circular | For Female Sockets | Crimp | Contacts Not Included | Black |
