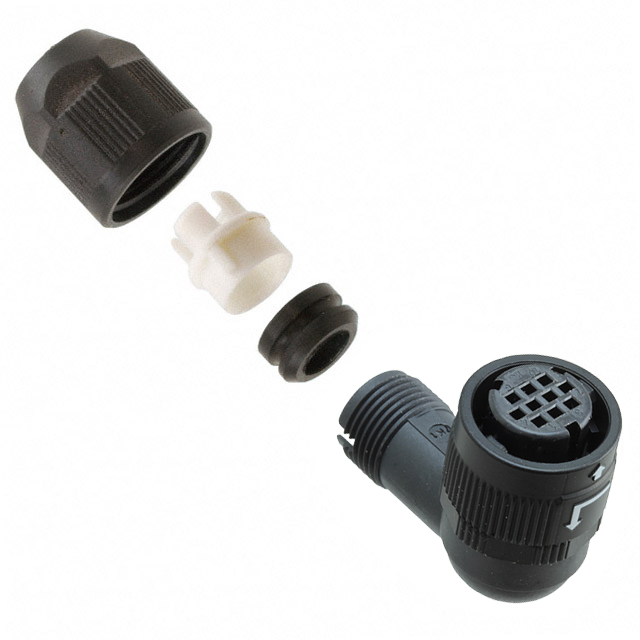

HR34B-12WLPD-10SC

Active

Hirose Electric USA, Inc.

CONN PLG HSG FMAL 10PS INLINE RA

Deep-Dive with AI

Search across all available documentation for this part.

HR34B-12WLPD-10SC

Active

Hirose Electric USA, Inc.

CONN PLG HSG FMAL 10PS INLINE RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR34B-12WLPD-10SC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell, Coupling Nut, Strain Relief, Rotatable
Housing Color	Black
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	12
Shielding	Unshielded
Type	For Female Sockets

HR34B Series

Part	Applications	Insert Material	Shell Finish	Primary Material	Number of Positions	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Connector Type	Contact Material	Ingress Protection	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Voltage Rating	Current Rating (Amps)	Shell Size - Insert	Orientation	Color	Fastening Type	Shielding	Contact Shape	Type	Contact Type	Note	Housing Color	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Hirose Electric USA, Inc. HR34B-12WLPK-10S	Telecommunications	Polyphenylene Sulfide (PPS)	Chrome	Metal	10	Free Hanging (In-Line) Right Angle	9 mm	8 mm	0.315 in 0.354 in	Aluminum Alloy Black Chromate	Female Sockets Plug	Phosphor Bronze	IP67F/IP68F - Dust Tight Oil Resistant Waterproof	Gold	UL94 V-0	125 °C	-25 °C	Zinc Alloy	0.203 Ám	8 Áin	Backshell Coupling Nut Rotatable Strain Relief	200 VAC 250 VDC	3 A	12	N	Black	Bayonet Lock	Unshielded
Hirose Electric USA, Inc. HR34B-12WLPK-10SC		Polyphenylene Sulfide (PPS)	Chrome		10	Free Hanging (In-Line) Right Angle					Plug Housing		IP67/IP68 - Dust Tight Waterproof		UL94 V-0	125 °C	-25 °C	Zinc Alloy			Backshell Coupling Nut Rotatable Strain Relief			12	N		Bayonet Lock	Unshielded	Circular	For Female Sockets	Crimp	Contacts Not Included	Black
Hirose Electric USA, Inc. HR34B-12WLPD-4S	Telecommunications	Polyphenylene Sulfide (PPS)	Chrome	Metal	4	Free Hanging (In-Line) Right Angle				Nylon Polyamide (PA)	Female Sockets Plug	Copper Alloy	IP67F/IP68F - Dust Tight Oil Resistant Waterproof	Silver	UL94 V-0	125 °C	-25 °C	Zinc Alloy	2 µm	78.7 µin	Backshell Coupling Nut Rotatable Strain Relief		5 A	12	N	Black	Bayonet Lock	Unshielded						5.7 mm	0.224 in 0.256 in	6.5 mm
Hirose Electric USA, Inc. HR34B-12WPE-4S-X	Telecommunications	Polyphenylene Sulfide (PPS)	Chrome	Metal	4	Free Hanging (In-Line)				Nylon Polyamide (PA)	Female Sockets Plug	Copper Alloy	IP67F/IP68F - Dust Tight Oil Resistant Waterproof	Silver	UL94 V-0	125 °C	-25 °C	Zinc Alloy	2 µm	78.7 µin			5 A	12	X	Black	Bayonet Lock	Unshielded									0.256 in	6.5 mm	0.287 in	7.3 mm
Hirose Electric USA, Inc. HR34B-12WLPA-10SC		Polyphenylene Sulfide (PPS)	Chrome		10	Free Hanging (In-Line) Right Angle					Plug Housing		IP67/IP68 - Dust Tight Waterproof		UL94 V-0	125 °C	-25 °C	Zinc Alloy			Backshell Coupling Nut Rotatable Strain Relief			12	N		Bayonet Lock	Unshielded	Circular	For Female Sockets	Crimp	Contacts Not Included	Black
Hirose Electric USA, Inc. HR34B-12WLPD-10SC		Polyphenylene Sulfide (PPS)	Chrome		10	Free Hanging (In-Line) Right Angle					Plug Housing		IP67/IP68 - Dust Tight Waterproof		UL94 V-0	125 °C	-25 °C	Zinc Alloy			Backshell Coupling Nut Rotatable Strain Relief			12	N		Bayonet Lock	Unshielded	Circular	For Female Sockets	Crimp	Contacts Not Included	Black
Hirose Electric USA, Inc. HR34B-12WPB-10SC		Polyphenylene Sulfide (PPS)	Chrome		10	Free Hanging (In-Line)					Plug Housing		IP67/IP68 - Dust Tight Waterproof		UL94 V-0	125 °C	-25 °C	Zinc Alloy						12	N		Bayonet Lock	Unshielded	Circular	For Female Sockets	Crimp	Contacts Not Included	Black
Hirose Electric USA, Inc. HR34B-12WLPE-4S-X	Telecommunications	Polyphenylene Sulfide (PPS)	Chrome	Metal	4	Free Hanging (In-Line) Right Angle				Nylon Polyamide (PA)	Female Sockets Plug	Copper Alloy	IP67F/IP68F - Dust Tight Oil Resistant Waterproof	Silver	UL94 V-0	125 °C	-25 °C	Zinc Alloy	2 µm	78.7 µin	Backshell Coupling Nut Rotatable Strain Relief		5 A	12	X	Black	Bayonet Lock	Unshielded									0.256 in	6.5 mm	0.287 in	7.3 mm
Hirose Electric USA, Inc. HR34B-12WPE-10S	Telecommunications	Polyphenylene Sulfide (PPS)	Chrome	Metal	10	Free Hanging (In-Line)				Nylon Polyamide (PA)	Female Sockets Plug	Phosphor Bronze	IP67F/IP68F - Dust Tight Oil Resistant Waterproof	Gold	UL94 V-0	125 °C	-25 °C	Zinc Alloy	0.203 Ám	8 Áin		200 VAC 250 VDC	3 A	12	N	Black	Bayonet Lock	Unshielded									0.256 in	6.5 mm	0.287 in	7.3 mm
Hirose Electric USA, Inc. HR34B-12WLPE-10SC		Polyphenylene Sulfide (PPS)	Chrome		10	Free Hanging (In-Line) Right Angle					Plug Housing		IP67/IP68 - Dust Tight Waterproof		UL94 V-0	125 °C	-25 °C	Zinc Alloy			Backshell Coupling Nut Rotatable Strain Relief			12	N		Bayonet Lock	Unshielded	Circular	For Female Sockets	Crimp	Contacts Not Included	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 14.74

Description

General part information

HR34B Series

10 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable, Strain Relief
