19200320226

Active

HARTING Technology Group

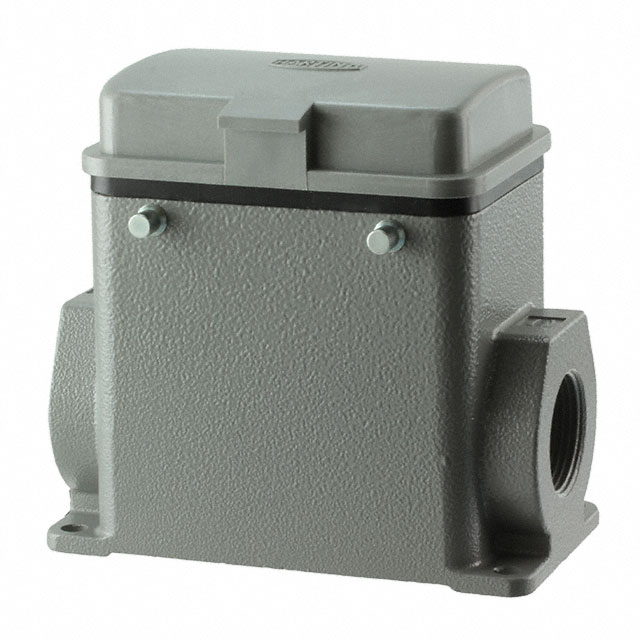

HAN A BASE SURFACE HC 4 PEGS THERMOPLAST ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

Documents19200320226 Prod Declaration Cert Datasheet

19200320226

Active

HARTING Technology Group

HAN A BASE SURFACE HC 4 PEGS THERMOPLAST ROHS COMPLIANT: NA

Deep-Dive with AI

Documents19200320226 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19200320226

Connector Type	Base - Box Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 A
Size / Dimension [x]	106 mm
Size / Dimension [x]	4.173 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.22 in
Size / Dimension [z]	81.8 mm
Style	Side Entry
Thread Size	M25

19200320 Series

Part	Style	Ingress Protection	Housing Color	Thread Size	Connector Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Housing Finish	Size	Housing Material	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 19200320537	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Hood	125 °C	-40 °C
HARTING Technology Group 19200320437	Top Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Hood	125 °C	-40 °C
HARTING Technology Group 19200320272	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Base - Box Mount	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Feed Through
HARTING Technology Group 19200320426	Top Entry	IP65 - Dust Tight Water Resistant	Gray	M25	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C
HARTING Technology Group 19200320226	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M25	Base - Box Mount	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Hood	125 °C	-40 °C	Cover
HARTING Technology Group 19200320527	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 138.00
		10	$ 105.18
		25	$ 95.65
		50	$ 89.45
		100	$ 84.00
Newark	Each	1	$ 184.80
		10	$ 174.42
		25	$ 169.23
		50	$ 156.77
		100	$ 148.47

Description

General part information

19200320 Series

Base - Box Mount Connector Side Entry M25 32A IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

19200320226 Prod Declaration Cert

Datasheet
