19200320437

Active

HARTING Technology Group

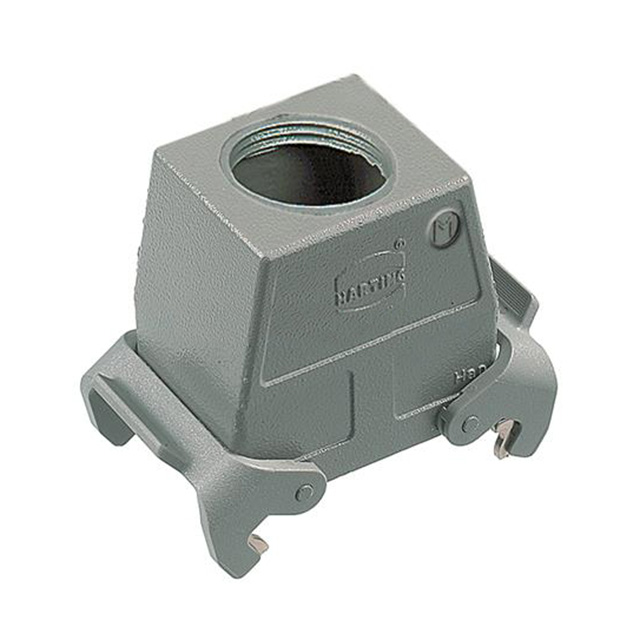

HAN A HOOD TOP ENTRY HC 2 LEVERS PG 21 ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

Documents19200320437 Prod Declaration Cert Datasheet

19200320437

Active

HARTING Technology Group

HAN A HOOD TOP ENTRY HC 2 LEVERS PG 21 ROHS COMPLIANT: NA

Deep-Dive with AI

Documents19200320437 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19200320437

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 A
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	2.205 in
Size / Dimension [y]	56 mm
Size / Dimension [z]	3.11 "
Size / Dimension [z]	79 mm
Style	Top Entry
Thread Size	M32

19200320 Series

Part	Style	Ingress Protection	Housing Color	Thread Size	Connector Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Housing Finish	Size	Housing Material	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 19200320537	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Hood	125 °C	-40 °C
HARTING Technology Group 19200320437	Top Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Hood	125 °C	-40 °C
HARTING Technology Group 19200320272	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Base - Box Mount	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Feed Through
HARTING Technology Group 19200320426	Top Entry	IP65 - Dust Tight Water Resistant	Gray	M25	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C
HARTING Technology Group 19200320226	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M25	Base - Box Mount	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Hood	125 °C	-40 °C	Cover
HARTING Technology Group 19200320527	Side Entry	IP65 - Dust Tight Water Resistant	Gray	M32	Hood	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	32 A	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.48
		10	$ 57.34
		25	$ 55.13
		50	$ 53.29
		100	$ 50.35
Newark	Each	1	$ 64.78
		10	$ 61.14
		25	$ 59.32
		50	$ 54.95
		100	$ 52.04

Description

General part information

19200320 Series

Hood Connector Top Entry M32 32A IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

19200320437 Prod Declaration Cert

Datasheet
