19400030900

Active

HARTING Technology Group

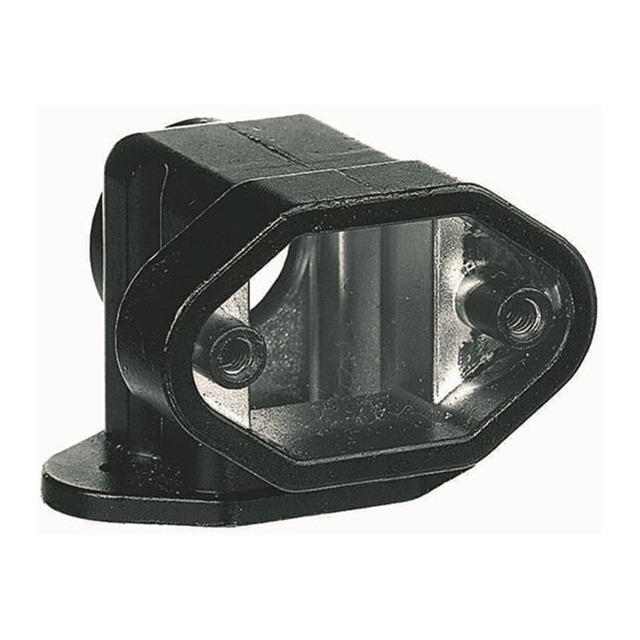

HAN 3HPR SURFACE MOUNT. HOUS. ANG LED PG ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 3HPR SURFACE MOUNT. HOUS. ANG LED PG ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Ingress Protection	Size	Housing Color	Style	Lock Location	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19400030400	Hood	IP65 IP68	3 A	Black	Top Entry	Screw Locks on Hood	Zinc Die Cast	1.791 in	45.5 mm	1.276 in	2.156 in	54.75 mm	32.4 mm	M20	Chromate	125 °C	-40 °C
HARTING Technology Group 19400030950	Base - Panel Mount 90°		3 A	Black	Side Entry	Screw Locks on Hood	Zinc Die Cast							M20	Chromate	125 °C	-40 °C
HARTING Technology Group 19400030900	Base - Panel Mount 90°		3 A	Black	Side Entry	Screw Locks on Hood	Zinc Die Cast	1.787 in	45.4 mm	1.083 in	1.354 in	34.4 mm	27.5 mm	M20	Chromate	125 °C	-40 °C
HARTING Technology Group 19400030401	Hood	IP65 IP68	3 A	Black	Top Entry	Screw Locks on Hood	Zinc Die Cast							M25	Chromate	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount 90° Connector Side Entry M20 3A IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
