19400030400

Active

HARTING Technology Group

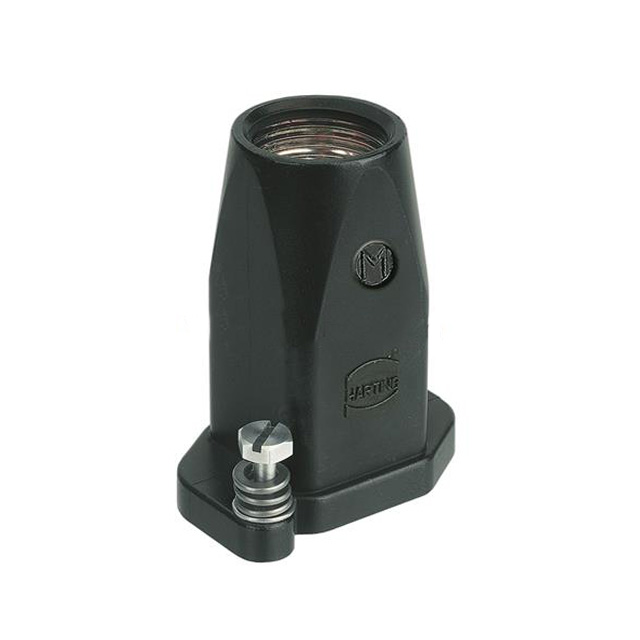

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ZINC BODY, SCREW, 3A

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ZINC BODY, SCREW, 3A

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Ingress Protection	Size	Housing Color	Style	Lock Location	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19400030400	Hood	IP65 IP68	3 A	Black	Top Entry	Screw Locks on Hood	Zinc Die Cast	1.791 in	45.5 mm	1.276 in	2.156 in	54.75 mm	32.4 mm	M20	Chromate	125 °C	-40 °C
HARTING Technology Group 19400030950	Base - Panel Mount 90°		3 A	Black	Side Entry	Screw Locks on Hood	Zinc Die Cast							M20	Chromate	125 °C	-40 °C
HARTING Technology Group 19400030900	Base - Panel Mount 90°		3 A	Black	Side Entry	Screw Locks on Hood	Zinc Die Cast	1.787 in	45.4 mm	1.083 in	1.354 in	34.4 mm	27.5 mm	M20	Chromate	125 °C	-40 °C
HARTING Technology Group 19400030401	Hood	IP65 IP68	3 A	Black	Top Entry	Screw Locks on Hood	Zinc Die Cast							M25	Chromate	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M20 3A IP65/IP68 - Dust Tight, Water Resistant, Waterproof
