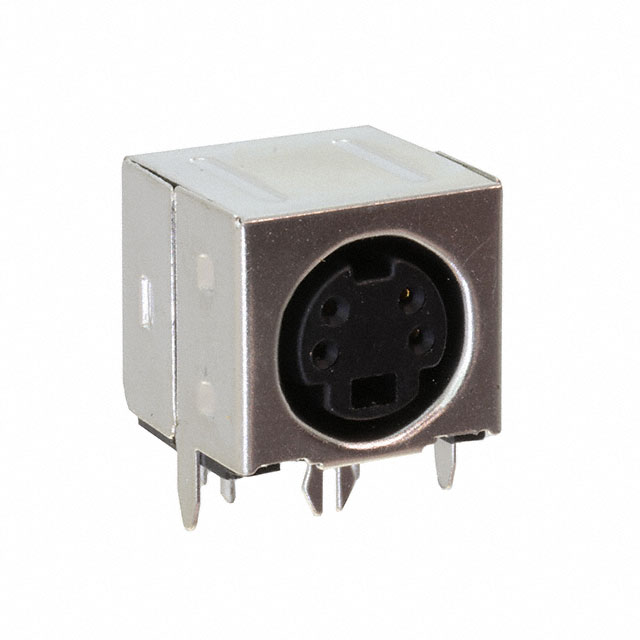

KMDGX-4S-BS

Active

Kycon, Inc.

CONN RCPT FMALE MINI DIN 4P SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN RCPT FMALE MINI DIN 4P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	KMDGX-4S-BS

Applications	Video, Audio
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	12 V

Part	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Applications	Fastening Type	Contact Finish - Mating	Connector Type	Shielding	Mounting Type	Orientation	Color	Insert Material	Shell Material	Voltage Rating	Number of Positions	Primary Material	Termination	Contact Material	Contact Finish Thickness - Mating	Features	Material Flammability Rating
Kycon, Inc. KMDGX-4S-N	Mini DIN	-25 °C	80 C	2 A	Audio Video	Push-Pull	Gold	Receptacle Female Sockets	Unshielded	Through Hole Right Angle	Keyed	Black Silver	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	12 V	4	Plastic	Solder	Copper Alloy	Flash
Kycon, Inc. KMDGX-4S/4S-S4N1	Mini DIN	-25 °C	80 C	2 A	Audio Video	Push-Pull	Gold	Receptacle Female Sockets	Shielded	Through Hole Right Angle	Keyed	Black Silver	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	12 V	4	Plastic	Solder	Copper Alloy	Flash	Board Lock Stacked 2	UL94 V-0
Kycon, Inc. KMDGX-4S-BS	Mini DIN	-25 °C	80 C	2 A	Audio Video	Push-Pull	Gold	Receptacle Female Sockets	Shielded	Through Hole Right Angle	Keyed	Black Silver	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	12 V	4	Plastic	Solder	Copper Alloy	Flash	Board Guide Board Lock
