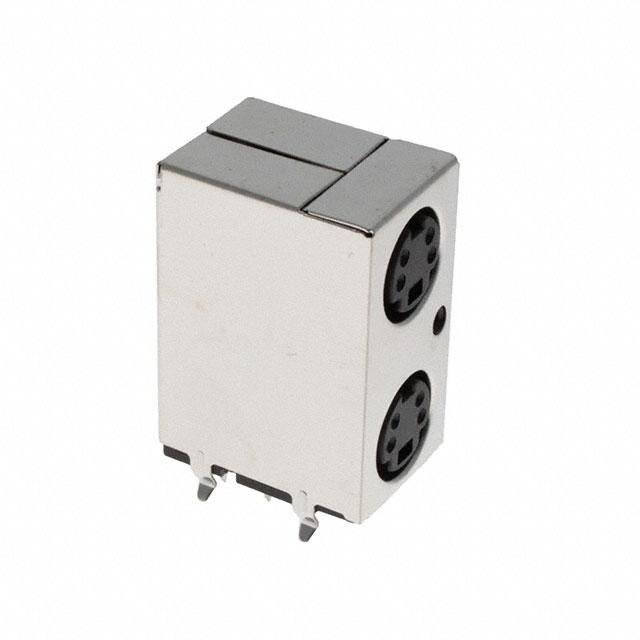

KMDGX-4S/4S-S4N1

Active

Kycon, Inc.

CONN RCPT FMALE MIN DIN 4/4P SLD

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN RCPT FMALE MIN DIN 4/4P SLD

Technical Specifications

Parameters and characteristics for this part

Specification	KMDGX-4S/4S-S4N1

Applications	Video, Audio
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Board Lock, Stacked 2
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	12 V

Part	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Applications	Fastening Type	Contact Finish - Mating	Connector Type	Shielding	Mounting Type	Orientation	Color	Insert Material	Shell Material	Voltage Rating	Number of Positions	Primary Material	Termination	Contact Material	Contact Finish Thickness - Mating	Features	Material Flammability Rating
Kycon, Inc. KMDGX-4S-N	Mini DIN	-25 °C	80 C	2 A	Audio Video	Push-Pull	Gold	Receptacle Female Sockets	Unshielded	Through Hole Right Angle	Keyed	Black Silver	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	12 V	4	Plastic	Solder	Copper Alloy	Flash
Kycon, Inc. KMDGX-4S/4S-S4N1	Mini DIN	-25 °C	80 C	2 A	Audio Video	Push-Pull	Gold	Receptacle Female Sockets	Shielded	Through Hole Right Angle	Keyed	Black Silver	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	12 V	4	Plastic	Solder	Copper Alloy	Flash	Board Lock Stacked 2	UL94 V-0
Kycon, Inc. KMDGX-4S-BS	Mini DIN	-25 °C	80 C	2 A	Audio Video	Push-Pull	Gold	Receptacle Female Sockets	Shielded	Through Hole Right Angle	Keyed	Black Silver	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	12 V	4	Plastic	Solder	Copper Alloy	Flash	Board Guide Board Lock
