DF58-2830SCF

Active

Hirose Electric USA, Inc.

[SNAPBEE ] SMALL-SIZED, LOW PROFILE 1.0MM HEIGHT, WIRE-TO-BOARD CONNECTORS FOR POWER SUPPLY

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

[SNAPBEE ] SMALL-SIZED, LOW PROFILE 1.0MM HEIGHT, WIRE-TO-BOARD CONNECTORS FOR POWER SUPPLY

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions Loaded	Mounting Type	Features	Termination	Shrouding	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Style	Contact Shape	Number of Rows	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Material Flammability Rating	Contact Finish - Post	Contact Type	Number of Positions	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Type	Contact Termination	Contact Finish
Hirose Electric USA, Inc. DF58-3P-1.2V(21)	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Swing Lock	All	Surface Mount	Solder Retention	Solder	Unshrouded	0.095 in	2.41 mm	100 V	Board to Cable/Wire	Rectangular	1	Header	0.047 in	1.2 mm	Black	Copper Alloy	UL94 V-0	Tin	Male Blade
Hirose Electric USA, Inc. DF58-4P-1.2V(21)	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Swing Lock	All	Surface Mount	Solder Retention	Solder	Unshrouded	0.095 in	2.41 mm	100 V	Board to Cable/Wire	Rectangular	1	Header	0.047 in	1.2 mm	Black	Copper Alloy	UL94 V-0	Tin	Male Blade	4

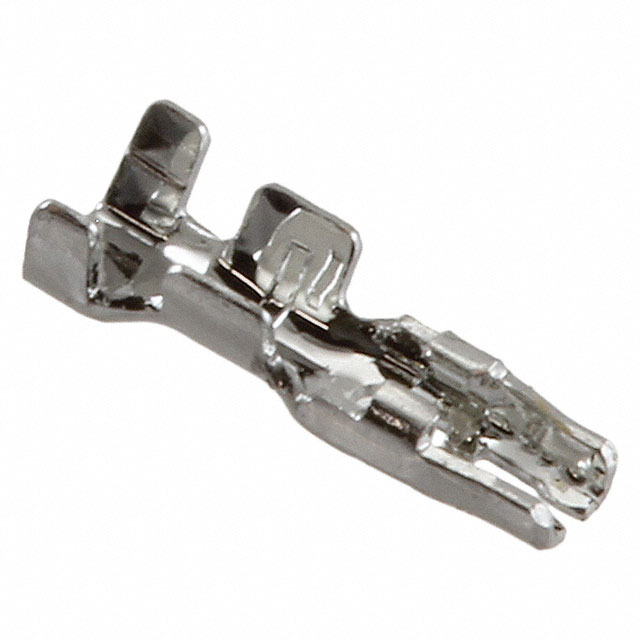

Hirose Electric USA, Inc. DF58-2830SCF																									Female Blade Sockets	30 AWG	27.5 AWG	Stamped	Crimp	Tin
Hirose Electric USA, Inc. DF58-6P-1.2V(21)	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Swing Lock	All	Surface Mount	Solder Retention	Solder	Unshrouded	0.095 in	2.41 mm	100 V	Board to Cable/Wire	Rectangular	1	Header	0.047 in	1.2 mm	Black	Copper Alloy	UL94 V-0	Tin	Male Blade	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Blade Sockets Contact Tin 28-30 AWG Crimp Stamped
