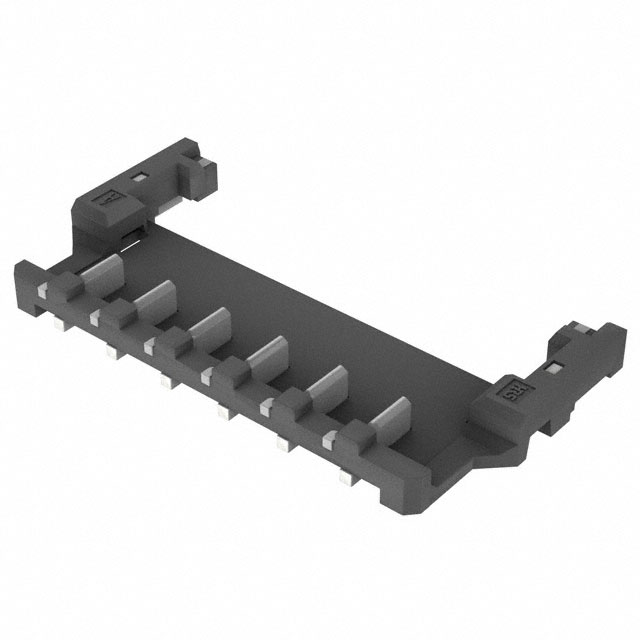

DF58-6P-1.2V(21)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 6POS 1.2MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 6POS 1.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF58-6P-1.2V(21)

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Swing Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.047 in
Pitch - Mating	1.2 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions Loaded	Mounting Type	Features	Termination	Shrouding	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Style	Contact Shape	Number of Rows	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Material Flammability Rating	Contact Finish - Post	Contact Type	Number of Positions	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Type	Contact Termination	Contact Finish
Hirose Electric USA, Inc. DF58-3P-1.2V(21)	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Swing Lock	All	Surface Mount	Solder Retention	Solder	Unshrouded	0.095 in	2.41 mm	100 V	Board to Cable/Wire	Rectangular	1	Header	0.047 in	1.2 mm	Black	Copper Alloy	UL94 V-0	Tin	Male Blade
Hirose Electric USA, Inc. DF58-4P-1.2V(21)	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Swing Lock	All	Surface Mount	Solder Retention	Solder	Unshrouded	0.095 in	2.41 mm	100 V	Board to Cable/Wire	Rectangular	1	Header	0.047 in	1.2 mm	Black	Copper Alloy	UL94 V-0	Tin	Male Blade	4
Hirose Electric USA, Inc. DF58-2830SCF																									Female Blade Sockets	30 AWG	27.5 AWG	Stamped	Crimp	Tin
Hirose Electric USA, Inc. DF58-6P-1.2V(21)	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Swing Lock	All	Surface Mount	Solder Retention	Solder	Unshrouded	0.095 in	2.41 mm	100 V	Board to Cable/Wire	Rectangular	1	Header	0.047 in	1.2 mm	Black	Copper Alloy	UL94 V-0	Tin	Male Blade	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 6 position 0.047" (1.20mm)
