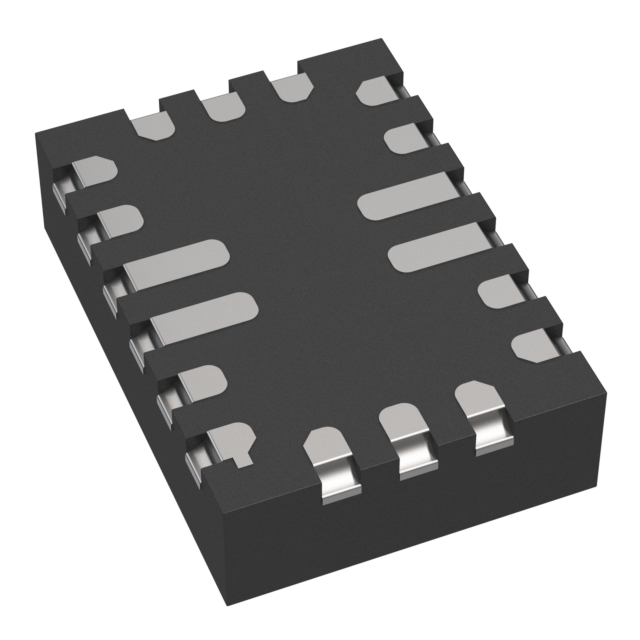

MPQ2166BGRHE-AEC1-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ DL 18QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ DL 18QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ2166BGRHE-AEC1-P

Current - Output [x]	3 A, 2 A
Current - Output [y]	1 A, 2 A
Frequency - Switching [Max]	3 MHz
Frequency - Switching [Min]	350 kHz
Function	Step-Down
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	18-PowerVFQFN
Qualification	AEC-Q100
Supplier Device Package	18-QFN (2.5x3.5)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	6 V
Voltage - Input (Min) [Min]	2.7 V
Voltage - Output (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	0.6 V

Part	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Output Configuration	Topology	Current - Output [y]	Current - Output [x]	Mounting Type	Qualification	Supplier Device Package	Frequency - Switching [Max]	Grade	Function	Voltage - Input (Min) [Min]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]
MONOLITHIC POWER SYSTEMS (MPS) MPQ2166GDE-AEC1-P	18-PowerVFQFN	1	6 V	5.5 V	Positive	Buck	1 A 2 A	2 A 3 A	Surface Mount Wettable Flank	AEC-Q100	18-QFN (2.5x3.5)	3 MHz	Automotive	Step-Down	2.7 V	Adjustable	-40 °C	125 ¯C	0.6 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ2166BGRHE-AEC1-P	18-PowerVFQFN	2	6 V	5.5 V	Positive	Buck	1 A 2 A	2 A 3 A	Surface Mount Wettable Flank	AEC-Q100	18-QFN (2.5x3.5)	3 MHz	Automotive	Step-Down	2.7 V	Adjustable	-40 °C	125 ¯C	0.6 V	350 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ2166GD-AEC1-P	18-VFQFN								Surface Mount		18-QFN (2x3)
MONOLITHIC POWER SYSTEMS (MPS) MPQ2166GRH-AEC1-Z	18-PowerVFQFN	2	6 V	5.5 V	Positive	Buck	1 A 2 A	2 A 3 A	Surface Mount Wettable Flank	AEC-Q100	18-QFN (2.5x3.5)	3 MHz	Automotive	Step-Down	2.7 V	Adjustable	-40 °C	125 ¯C	0.6 V	350 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ2166GD-Z	18-VFQFN								Surface Mount		18-QFN (2x3)
MONOLITHIC POWER SYSTEMS (MPS) MPQ2166GD-AEC1-Z	18-VFQFN	2	6 V	5.5 V	Positive	Buck	1 A 2 A	2 A 3 A	Surface Mount	AEC-Q100	18-QFN (2x3)	3 MHz	Automotive	Step-Down	2.7 V	Adjustable	-40 °C	125 ¯C	0.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 2A/2A, 3A/1A 18-PowerVFQFN
