BWA-BP1412A

Active

BANNER ENGINEERING

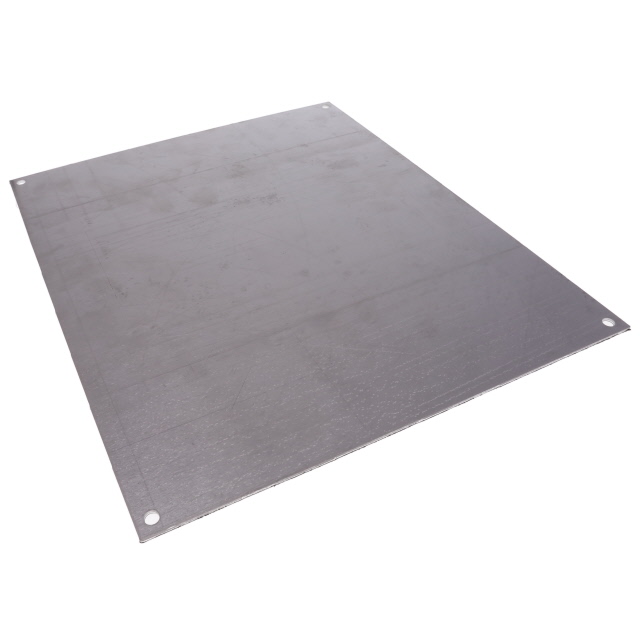

ALUMINUM BACK PANEL 14X12

Search across all available documentation for this part.

Active

BANNER ENGINEERING

ALUMINUM BACK PANEL 14X12

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Material	Type	Design	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	For Use With/Related Products	Accessory Type	Ratings	Color
BANNER ENGINEERING BWA-BP1412A	14 mm	0.472 "	12 mm	0.551 in	Aluminum	Panel Rear
BANNER ENGINEERING BWA-AH14126	304.8 mm			12 "	Plastic Polycarbonate (PC)		Cover Included	355.6 mm	14 in	152.4 mm	6 in	Enclosure	168 in˛	1084 cm˛
BANNER ENGINEERING BWA-EF14128KIT	304.8 mm			12 "				355.6 mm	14 in	203.2 mm	8 "	Enclosure	168 in˛	1084 cm˛
BANNER ENGINEERING BWA-Q45VA-FESS															Industrial Automation	Mounting Kit
BANNER ENGINEERING BWA-EF1086	203.2 mm			8 in	Fiberglass		Hinged Door	254 mm	10 in	152.4 mm	6 in	Box	80 in²	516 cm²			IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 4 NEMA 4X UL-50 UL-50E	Opaque
BANNER ENGINEERING BWA-EF1086KIT	203.2 mm			8 in				254 mm	10 in	152.4 mm	6 in	Enclosure	80 in²	516 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 45.00
Newark	Each	1	$ 46.00

General part information

Aluminum Panel, Rear 0.551" W x 0.472" H (14.00mm x 12.00mm)
