BWA-EF1086

Active

BANNER ENGINEERING

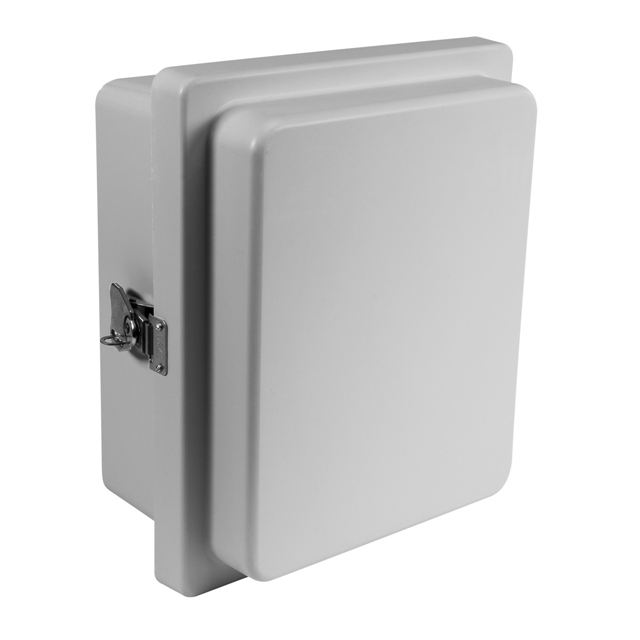

BOX FIBERGLASS OPAQUE 10"L X 8"W

Search across all available documentation for this part.

Active

BANNER ENGINEERING

BOX FIBERGLASS OPAQUE 10"L X 8"W

Technical Specifications

Parameters and characteristics for this part

Specification	BWA-EF1086

Area (L x W)	80 in²
Area (L x W)	516 cm²
Color	Opaque
Container Type	Box
Design	Hinged Door
Height [z]	152.4 mm
Height [z]	6 in
Material	Fiberglass
Ratings	NEMA 13, NEMA 1, UL-50E, NEMA 4X, NEMA 4, NEMA 3, IP66, NEMA 2, NEMA 12, UL-50
Size / Dimension [x]	254 mm
Size / Dimension [x]	10 in
Size / Dimension [y]	8 in
Size / Dimension [y]	203.2 mm

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Material	Type	Design	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	For Use With/Related Products	Accessory Type	Ratings	Color
BANNER ENGINEERING BWA-BP1412A	14 mm	0.472 "	12 mm	0.551 in	Aluminum	Panel Rear
BANNER ENGINEERING BWA-AH14126	304.8 mm			12 "	Plastic Polycarbonate (PC)		Cover Included	355.6 mm	14 in	152.4 mm	6 in	Enclosure	168 in˛	1084 cm˛
BANNER ENGINEERING BWA-EF14128KIT	304.8 mm			12 "				355.6 mm	14 in	203.2 mm	8 "	Enclosure	168 in˛	1084 cm˛
BANNER ENGINEERING BWA-Q45VA-FESS															Industrial Automation	Mounting Kit
BANNER ENGINEERING BWA-EF1086	203.2 mm			8 in	Fiberglass		Hinged Door	254 mm	10 in	152.4 mm	6 in	Box	80 in²	516 cm²			IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 4 NEMA 4X UL-50 UL-50E	Opaque
BANNER ENGINEERING BWA-EF1086KIT	203.2 mm			8 in				254 mm	10 in	152.4 mm	6 in	Enclosure	80 in²	516 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 162.00
Newark	Each	1	$ 165.00

General part information

Box Fiberglass Opaque Hinged Door 10.000" L x 8.000" W (254.00mm x 203.20mm) X 6.000" (152.40mm)
