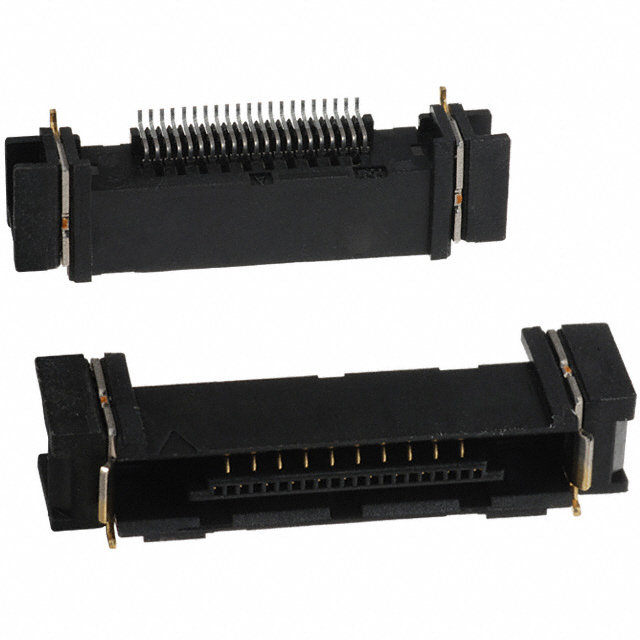

FX15M-21S-0.5SH

Active

Hirose Electric USA, Inc.

1.0MM PITCH CABLE-TO-BOARD CONNECTORS SUPPORTING LVDS SIGNAL

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

1.0MM PITCH CABLE-TO-BOARD CONNECTORS SUPPORTING LVDS SIGNAL

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Termination	Number of Positions	Connector Style	Mounting Type	Connector Type	Features	Accessory Type	For Use With/Related Products
Hirose Electric USA, Inc. FX15M-21S-0.5SH	Gold	Solder	21	Receptacle	Surface Mount Right Angle	Multi-Purpose
Hirose Electric USA, Inc. FX15SC-41S-0.5SH	Gold	Solder	41	Receptacle	Surface Mount Right Angle	Multi-Purpose	Shielded
Hirose Electric USA, Inc. FX15-31P-C								Housing	FX15 Series
Hirose Electric USA, Inc. FX15S-51P-0.5FC	Gold	Solder	51	Plug	Free Hanging (In-Line)	Multi-Purpose	Latch Lock Shielded
Hirose Electric USA, Inc. FX15SW-31P-C								Housing	FX15 Series
Hirose Electric USA, Inc. FX15-3032PCFB(01)								Contact	FX15 Series
Hirose Electric USA, Inc. FX15SC-51S-0.5SH(30)	Gold	Solder	51	Receptacle	Surface Mount Right Angle	Multi-Purpose	Shielded
Hirose Electric USA, Inc. FX15M-31S-0.5SH(30)	Gold	Solder	31	Receptacle	Surface Mount Right Angle	Multi-Purpose
Hirose Electric USA, Inc. FX15SC-51S-0.5SV	Gold	Solder	51	Receptacle	Surface Mount	Multi-Purpose	Shielded
Hirose Electric USA, Inc. FX15-3032PCFA								Contact	FX15 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.35
	Digi-Reel®	1	$ 1.35
	Tape & Reel (TR)	1000	$ 0.76
Newark	Each (Supplied on Full Reel)	1	$ 1.26
		5000	$ 1.10

General part information

21 Position Multi-Purpose Receptacle Connector Solder Surface Mount, Right Angle
