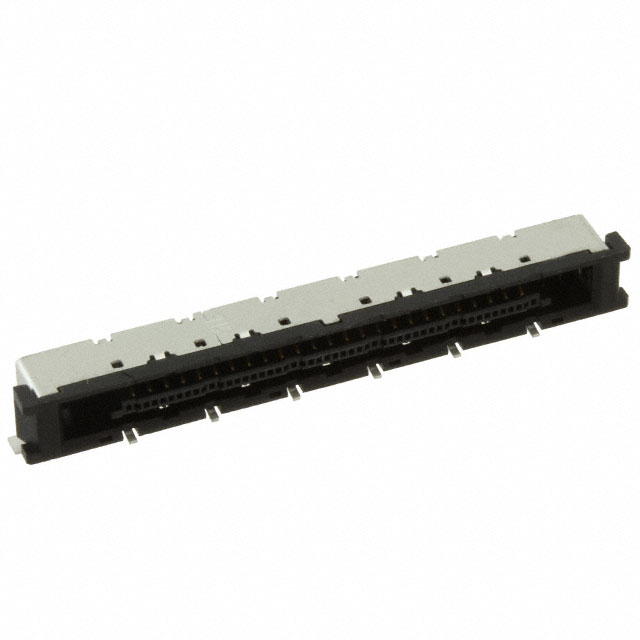

FX15SC-51S-0.5SH(30)
LTBHirose Electric USA, Inc.
CONN MULTI-PURP RCPT 51P R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FX15SC-51S-0.5SH(30)
LTBHirose Electric USA, Inc.
CONN MULTI-PURP RCPT 51P R/A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FX15SC-51S-0.5SH(30) |
|---|---|
| Connector Style | Receptacle |
| Connector Type | Multi-Purpose |
| Contact Finish | Gold |
| Features | Shielded |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 51 |
| Termination | Solder |
FX15 Series
| Part | Contact Finish | Termination | Number of Positions | Connector Style | Mounting Type | Connector Type | Features | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Gold | Solder | 21 | Receptacle | Surface Mount Right Angle | Multi-Purpose | |||
Hirose Electric USA, Inc. | Gold | Solder | 41 | Receptacle | Surface Mount Right Angle | Multi-Purpose | Shielded | ||
Hirose Electric USA, Inc. | Housing | FX15 Series | |||||||
Hirose Electric USA, Inc. | Gold | Solder | 51 | Plug | Free Hanging (In-Line) | Multi-Purpose | Latch Lock Shielded | ||
Hirose Electric USA, Inc. | Housing | FX15 Series | |||||||
Hirose Electric USA, Inc. | Contact | FX15 Series | |||||||
Hirose Electric USA, Inc. | Gold | Solder | 51 | Receptacle | Surface Mount Right Angle | Multi-Purpose | Shielded | ||
Hirose Electric USA, Inc. | Gold | Solder | 31 | Receptacle | Surface Mount Right Angle | Multi-Purpose | |||
Hirose Electric USA, Inc. | Gold | Solder | 51 | Receptacle | Surface Mount | Multi-Purpose | Shielded | ||
Hirose Electric USA, Inc. | Contact | FX15 Series |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 4.16 | |
Description
General part information
FX15 Series
51 Position Multi-Purpose Receptacle Connector Solder Surface Mount, Right Angle
