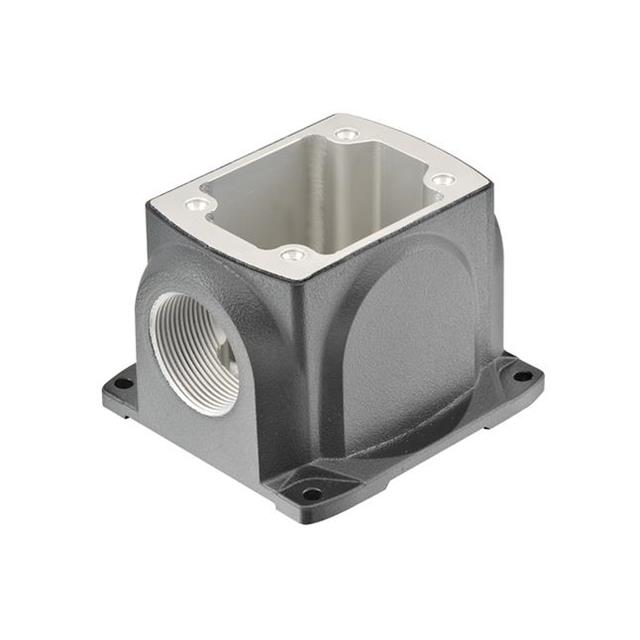

HAN-YELLOCK 30 SURFACE MOUNT HOUSING 2XM20 (W/O BULKHEAD HOUSING)

Deep-Dive with AI

Search across all available documentation for this part.

Documents11123001204 Prod Declaration Cert Datasheet

11123001204

Active

HARTING Technology Group

HAN-YELLOCK 30 SURFACE MOUNT HOUSING 2XM20 (W/O BULKHEAD HOUSING)

Deep-Dive with AI

Documents11123001204 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11123001204

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Black
Housing Finish	Epoxy Powder Paint
Housing Material	Die Cast, Aluminum
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	85 mm
Size / Dimension [x]	3.346 in
Size / Dimension [y]	82 mm
Size / Dimension [y]	3.228 "
Size / Dimension [z]	55 mm
Size / Dimension [z]	2.165 in
Style	Side Entry
Thread Size	M20

11123001 Series

Part	Style	Ingress Protection	Housing Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Lock Location	Housing Finish	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 11123001212	Side Entry	IP65 IP67	Gray	Aluminum Die Cast	125 °C	-40 °C	2.665 in	3.346 in	85 mm	82 mm	3.228 "	67.7 mm	M32	Screw Locks on Hood	Powder Coated	Base - Box Mount
HARTING Technology Group 11123001501	Side Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.496 in	2.862 in	72.7 mm		2.205 in		M25	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell	56 mm	63.4 mm
HARTING Technology Group 11123001206	Side Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.165 in	3.346 in	85 mm	82 mm	3.228 "	55 mm	M32	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Base - Box Mount			Feed Through
HARTING Technology Group 11123001204	Side Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.165 in	3.346 in	85 mm	82 mm	3.228 "	55 mm	M20	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Base - Box Mount			Feed Through
HARTING Technology Group 11123001216	Side Entry Dual	IP65 IP67	Gray	Aluminum Die Cast	125 °C	-40 °C	2.665 in	3.346 in	85 mm	82 mm	3.228 "	67.7 mm	M32	Screw Locks on Hood	Powder Coated	Base - Box Mount			Feed Through
HARTING Technology Group 11123001214	Side Entry Dual	IP65 IP67	Gray	Aluminum Die Cast	125 °C	-40 °C	2.665 in	3.346 in	85 mm	82 mm	3.228 "	67.7 mm	M20	Screw Locks on Hood	Powder Coated	Base - Box Mount			Feed Through
HARTING Technology Group 11123001401	Top Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.37 in	2.862 in	72.7 mm	56 mm	2.205 in	60.2 mm	M25	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell
HARTING Technology Group 11123001510	Side Entry	IP65 IP67	White	Aluminum Die Cast	125 °C	-40 °C							M20	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell
HARTING Technology Group 11123001400	Top Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.37 in	2.862 in	72.7 mm	56 mm	2.205 in	60.2 mm	M20	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell
HARTING Technology Group 11123001402	Top Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.37 in	2.862 in	72.7 mm	56 mm	2.205 in	60.2 mm	M32	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.75
Newark	Each	1	$ 54.80
		10	$ 49.69
		25	$ 47.70
		50	$ 44.58
		100	$ 42.87
		250	$ 40.60
TME	N/A	1	$ 88.05
		3	$ 78.79
		5	$ 69.49

Description

General part information

11123001 Series

Base - Box Mount Connector Side Entry M20 IP65/IP67 - Dust Tight, Water Resistant, Waterproof
