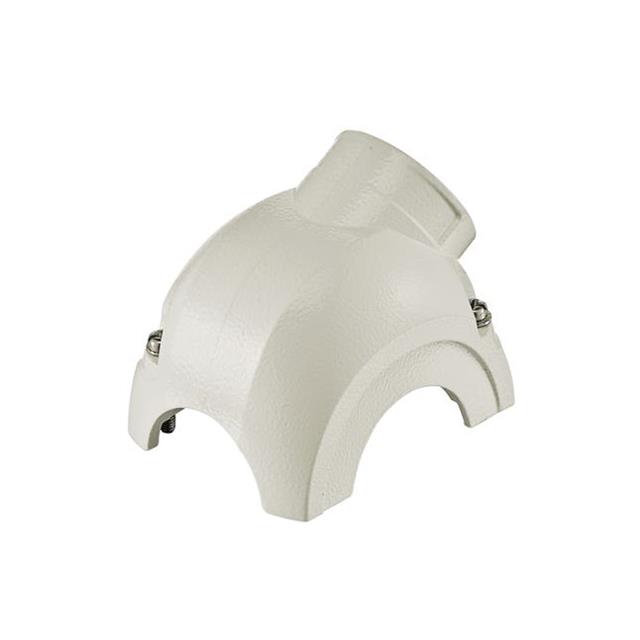

HAN-YELLOCK 30 HOOD SIDE ENTRY M20 - WHITE

Deep-Dive with AI

Search across all available documentation for this part.

Documents11123001510 Prod Declaration Cert Datasheet

11123001510

Active

HARTING Technology Group

HAN-YELLOCK 30 HOOD SIDE ENTRY M20 - WHITE

Deep-Dive with AI

Documents11123001510 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11123001510

Connector Type	Hood - Shell
Housing Color	White
Housing Finish	Epoxy Powder Paint
Housing Material	Die Cast, Aluminum
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Style	Side Entry
Thread Size	M20

11123001 Series

Part	Style	Ingress Protection	Housing Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Lock Location	Housing Finish	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 11123001212	Side Entry	IP65 IP67	Gray	Aluminum Die Cast	125 °C	-40 °C	2.665 in	3.346 in	85 mm	82 mm	3.228 "	67.7 mm	M32	Screw Locks on Hood	Powder Coated	Base - Box Mount
HARTING Technology Group 11123001501	Side Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.496 in	2.862 in	72.7 mm		2.205 in		M25	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell	56 mm	63.4 mm
HARTING Technology Group 11123001206	Side Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.165 in	3.346 in	85 mm	82 mm	3.228 "	55 mm	M32	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Base - Box Mount			Feed Through
HARTING Technology Group 11123001204	Side Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.165 in	3.346 in	85 mm	82 mm	3.228 "	55 mm	M20	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Base - Box Mount			Feed Through
HARTING Technology Group 11123001216	Side Entry Dual	IP65 IP67	Gray	Aluminum Die Cast	125 °C	-40 °C	2.665 in	3.346 in	85 mm	82 mm	3.228 "	67.7 mm	M32	Screw Locks on Hood	Powder Coated	Base - Box Mount			Feed Through
HARTING Technology Group 11123001214	Side Entry Dual	IP65 IP67	Gray	Aluminum Die Cast	125 °C	-40 °C	2.665 in	3.346 in	85 mm	82 mm	3.228 "	67.7 mm	M20	Screw Locks on Hood	Powder Coated	Base - Box Mount			Feed Through
HARTING Technology Group 11123001401	Top Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.37 in	2.862 in	72.7 mm	56 mm	2.205 in	60.2 mm	M25	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell
HARTING Technology Group 11123001510	Side Entry	IP65 IP67	White	Aluminum Die Cast	125 °C	-40 °C							M20	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell
HARTING Technology Group 11123001400	Top Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.37 in	2.862 in	72.7 mm	56 mm	2.205 in	60.2 mm	M20	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell
HARTING Technology Group 11123001402	Top Entry	IP65 IP67	Black	Aluminum Die Cast	125 °C	-40 °C	2.37 in	2.862 in	72.7 mm	56 mm	2.205 in	60.2 mm	M32	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	Hood - Shell
