ANT1204LL20R0315A

Active

Pulse Electronics

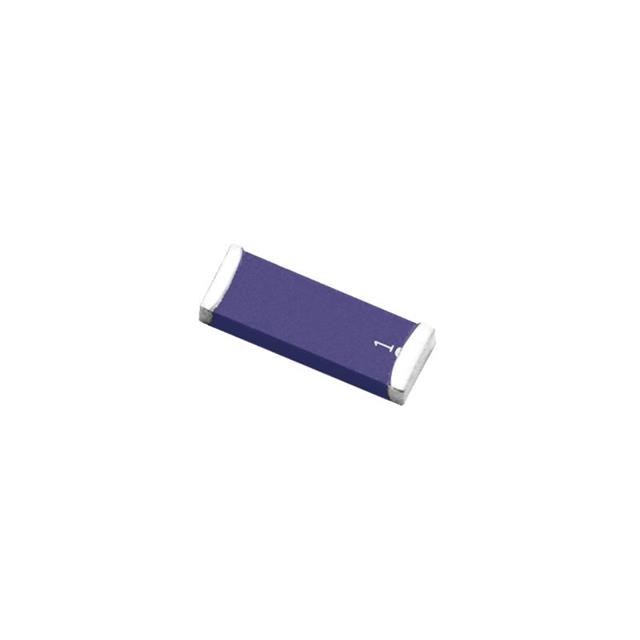

ANTENNA CHIP 315M HELIX TYPE20

Search across all available documentation for this part.

Active

Pulse Electronics

ANTENNA CHIP 315M HELIX TYPE20

Technical Specifications

Parameters and characteristics for this part

Part	Number of Bands	Frequency (Center/Band)	Antenna Type	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Termination	Return Loss	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [Max]	Height (Max) [Max]	Gain	Mounting Type	Applications	Frequency (Center/Band) [custom]	Frequency (Center/Band) [custom]	VSWR	RF Family/Standard	Frequency Group
Pulse Electronics ANT1204F002R0433A	1	433 MHz	Chip	1 W	1 GHz	300 MHz	Solder	-6.5 dB	419 MHz	447 MHz	0.063 in	1.6 mm	0.79 dBi	Surface Mount
Pulse Electronics ANT1204F007R0870A	1	870 MHz	Chip	1 W	1 GHz	300 MHz	Solder	10 dB			0.063 in	1.6 mm	1.67 dBi	Surface Mount	General Purpose
Pulse Electronics ANT1204LL00R0918A	2		Chip	2 W			Solder	-10 dB			0.047 in	1.2 mm	-1.6 dBi 1.08 dBi	Surface Mount		900 MHz	1.8 GHz	3
Pulse Electronics ANT1204LL20R0315A	1	315 MHz	Chip	1 W	1 GHz	300 MHz	Solder				0.059 in	1.5 mm		Surface Mount	ISM				General ISM
Pulse Electronics ANT1204LL04RGNSSA	1	1.58 GHz	Chip	1 W	2 GHz	1 GHz	Solder		1550 MHz	1.61 GHz	0.043 in	1.1 mm	2.32 dBi	Connector Mount	Beidou GLONASS GNSS GPS				Navigation	UHF
Pulse Electronics ANT1204LL08R0870A	1	870 MHz	Chip	1 W	1 GHz	300 MHz	Solder	-10 dB	853 MHz	887 MHz	0.063 in	1.6 mm	1.51 dBi	Surface Mount				1.92
Pulse Electronics ANT1204F005R0915A	1	915 MHz	Chip	1 W	1 GHz	300 MHz	Solder	10 dB			0.063 in	1.6 mm	1.59 dBi	Surface Mount	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA ISM Chip Solder Surface Mount
