ANT1204LL00R0918A

Active

Pulse Electronics

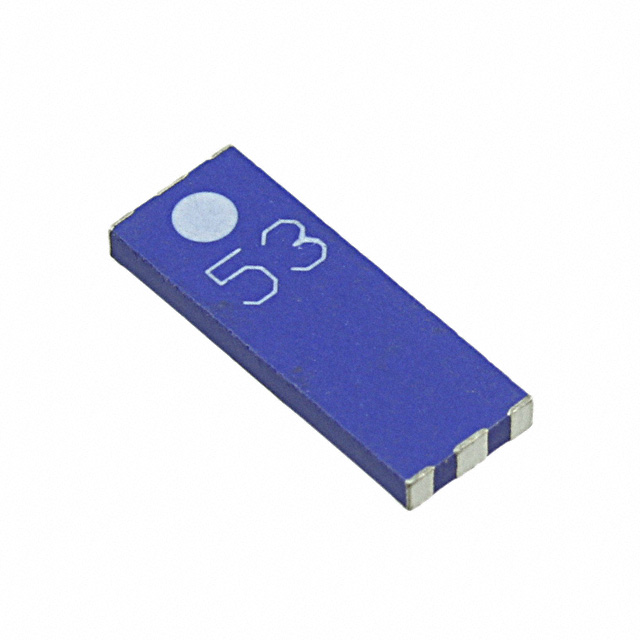

RF ANT 900MHZ/1.8GHZ CHIP SLD

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 900MHZ/1.8GHZ CHIP SLD

Technical Specifications

Parameters and characteristics for this part

Specification	ANT1204LL00R0918A

Antenna Type	Chip
Frequency (Center/Band) [custom]	900 MHz
Frequency (Center/Band) [custom]	1.8 GHz
Gain	-1.6 dBi, 1.08 dBi
Height (Max) [Max]	0.047 in
Height (Max) [Max]	1.2 mm
Mounting Type	Surface Mount
Number of Bands	2
Power - Max [Max]	2 W
Return Loss	-10 dB
Termination	Solder
VSWR	3

Part	Number of Bands	Frequency (Center/Band)	Antenna Type	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Termination	Return Loss	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [Max]	Height (Max) [Max]	Gain	Mounting Type	Applications	Frequency (Center/Band) [custom]	Frequency (Center/Band) [custom]	VSWR	RF Family/Standard	Frequency Group
Pulse Electronics ANT1204F002R0433A	1	433 MHz	Chip	1 W	1 GHz	300 MHz	Solder	-6.5 dB	419 MHz	447 MHz	0.063 in	1.6 mm	0.79 dBi	Surface Mount
Pulse Electronics ANT1204F007R0870A	1	870 MHz	Chip	1 W	1 GHz	300 MHz	Solder	10 dB			0.063 in	1.6 mm	1.67 dBi	Surface Mount	General Purpose
Pulse Electronics ANT1204LL00R0918A	2		Chip	2 W			Solder	-10 dB			0.047 in	1.2 mm	-1.6 dBi 1.08 dBi	Surface Mount		900 MHz	1.8 GHz	3
Pulse Electronics ANT1204LL20R0315A	1	315 MHz	Chip	1 W	1 GHz	300 MHz	Solder				0.059 in	1.5 mm		Surface Mount	ISM				General ISM
Pulse Electronics ANT1204LL04RGNSSA	1	1.58 GHz	Chip	1 W	2 GHz	1 GHz	Solder		1550 MHz	1.61 GHz	0.043 in	1.1 mm	2.32 dBi	Connector Mount	Beidou GLONASS GNSS GPS				Navigation	UHF
Pulse Electronics ANT1204LL08R0870A	1	870 MHz	Chip	1 W	1 GHz	300 MHz	Solder	-10 dB	853 MHz	887 MHz	0.063 in	1.6 mm	1.51 dBi	Surface Mount				1.92
Pulse Electronics ANT1204F005R0915A	1	915 MHz	Chip	1 W	1 GHz	300 MHz	Solder	10 dB			0.063 in	1.6 mm	1.59 dBi	Surface Mount	General Purpose
