3010-26-002-13-00

Active

CnC Tech, LLC

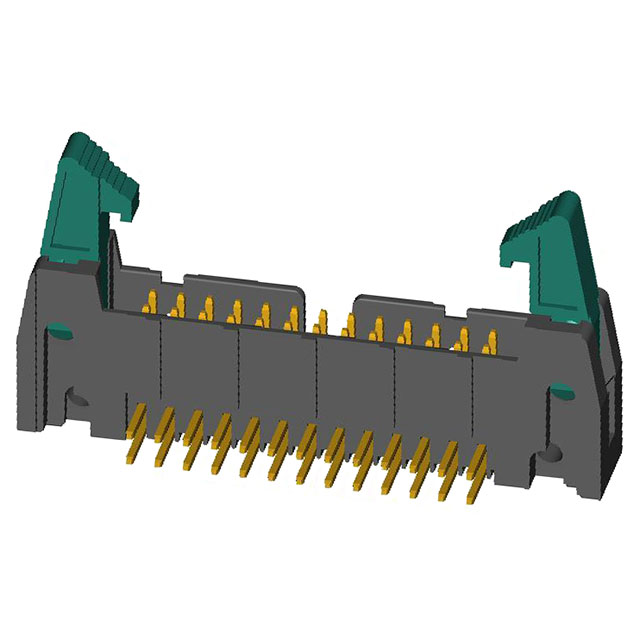

CONN EJECTOR HEADER HDR 26 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series IDC, Flat Ribbon Cable Mating Chart +2

3010-26-002-13-00

Active

CnC Tech, LLC

CONN EJECTOR HEADER HDR 26 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series IDC, Flat Ribbon Cable Mating Chart +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-26-002-13-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Height	0.327 "
Insulation Height	8.3 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3010-26 Series

Part	Contact Finish - Mating	Features	Shrouding	Contact Material	Current Rating (Amps)	Contact Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Style	Insulation Material	Contact Shape	Insulation Height [z]	Insulation Height [z]	Number of Positions	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height
CnC Tech, LLC 3010-26-001-13-00	Gold	Keying Slot	Shrouded - 4 Wall	Brass	3 A	Male Pin	Latch Lock/Eject Hooks Long	0.134 in	3.4 mm	Solder	250 VAC	-40 °C	105 ░C	Header	All	UL94 V-0	2.54 mm	0.1 in	2	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Square	17 mm	0.669 "	26	Through Hole	0.1 in	2.54 mm	Flash
CnC Tech, LLC 3010-26-002-13-00	Gold	Keying Slot	Shrouded - 4 Wall	Brass	3 A	Male Pin	Latch Lock/Eject Hooks Long	0.134 in	3.4 mm	Solder	250 VAC	-40 °C	105 ░C	Header	All	UL94 V-0	2.54 mm	0.1 in	2	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Square			26	Through Hole Right Angle	0.1 in	2.54 mm	Flash	0.327 "	8.3 mm
CnC Tech, LLC 3010-26-003-13-00	Gold	Keying Slot	Shrouded - 4 Wall	Brass	3 A	Male Pin	Latch Lock/Eject Hooks Long			Solder	250 VAC	-40 °C	105 ░C	Header	All	UL94 V-0	2.54 mm	0.1 in	2	Board to Cable/Wire	Nylon 9T Polyamide (PA9T)	Square	17 mm	0.669 "	26	Surface Mount	0.1 in	2.54 mm	Flash
CnC Tech, LLC 3010-26-002-12-00	Gold	Keying Slot	Shrouded - 4 Wall	Brass	3 A	Male Pin	Latch Lock/Eject Hooks Short	0.134 in	3.4 mm	Solder	250 VAC	-40 °C	105 ░C	Header	All	UL94 V-0	2.54 mm	0.1 in	2	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Square			26	Through Hole Right Angle	0.1 in	2.54 mm	Flash	0.327 "	8.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.17
		10	$ 0.17
		100	$ 0.17
Digikey	Tray	1	$ 2.13
		10	$ 1.85
		80	$ 1.65
		576	$ 1.38
		1152	$ 1.18
		5184	$ 1.05

Description

General part information

3010-26 Series

Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Soldering Guide 3X10,3X20,3221 Series

IDC, Flat Ribbon Cable Mating Chart

Datasheet

IDC Header Mating Guide

Datasheet
