3010-26-003-13-00
ActiveCnC Tech, LLC

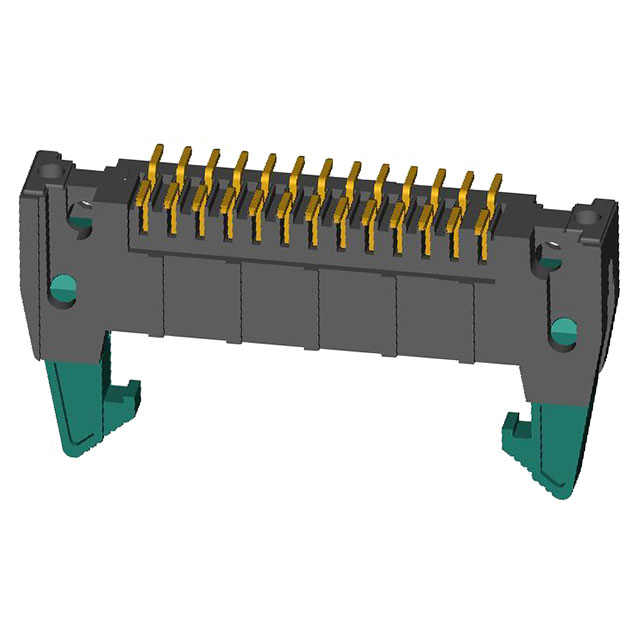

CONN HEADER SMD 26POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
3010-26-003-13-00
ActiveCnC Tech, LLC
CONN HEADER SMD 26POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3010-26-003-13-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Features | Keying Slot |
| Insulation Height [z] | 17 mm |
| Insulation Height [z] | 0.669 " |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.91 | |
| 10 | $ 1.66 | |||
| 80 | $ 1.48 | |||
| 576 | $ 1.24 | |||
| 1152 | $ 1.06 | |||
| 5184 | $ 0.94 | |||
| 10368 | $ 0.92 | |||
Description
General part information
3010-26 Series
Connector Header Surface Mount 26 position 0.100" (2.54mm)
