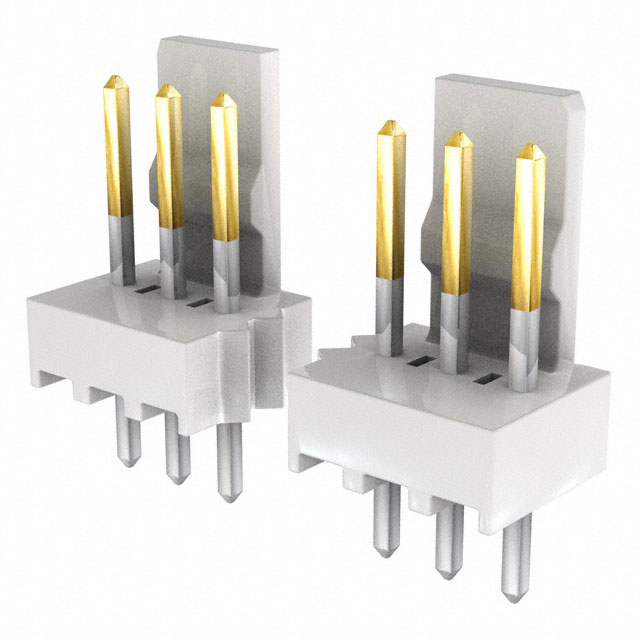

0022292151

Active

Molex

PLUGIN WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

0022292151

Active

Molex

PLUGIN WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022292151

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	11.7 mm
Insulation Height	0.461 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.22 mm
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

002229 Series

Part	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Mating	Contact Finish - Post	Contact Material	Style	Fastening Type	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Termination	Insulation Color	Number of Positions Loaded	Contact Shape	Number of Positions
Molex 0022292141	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	14	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292101	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	10	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292071	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	7	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292131	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	13	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292121	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	12	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292161	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in		UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square	16
Molex 0022292151	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	15	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292091	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	9	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292031	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in		UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square
Molex 0022292061	11.7 mm	0.461 "	Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	0.51 µm	20 µin	Male Pin	Gold	Tin	Brass	Board to Cable/Wire	Friction Lock	Shrouded - 1 Wall	3.56 mm	0.14 in	6	UL94 V-0	2.54 µm	100 µin	0.1 in	2.54 mm	Through Hole	7.49 mm	0.295 in	Header	14.22 mm	0.56 in	Solder	Natural	All	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 1.61
LCSC	Piece	1	$ 1.39
		250	$ 0.55
		500	$ 0.54
		1000	$ 0.53

Description

General part information

002229 Series

Connector Header Through Hole 15 position 0.100" (2.54mm)
