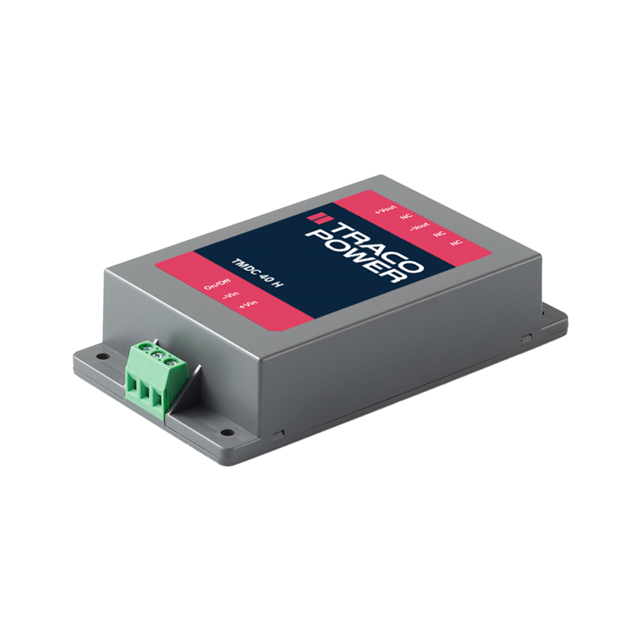

TMDC 40-7213H
ActiveTraco Power
DC/DC CONVERTER 15V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMDC 40-7213H
ActiveTraco Power
DC/DC CONVERTER 15V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMDC 40-7213H |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) [Max] | 2.67 A |
| Efficiency | 89 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 112 mm |
| Size / Dimension [x] | 4.41 " |
| Size / Dimension [y] | 63.8 mm |
| Size / Dimension [y] | 2.51 " |
| Size / Dimension [z] | 25.7 mm |
| Size / Dimension [z] | 1.01 in |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 80 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 88.11 | |
| 10 | $ 83.45 | |||
| 25 | $ 81.66 | |||
| 50 | $ 80.33 | |||
| 100 | $ 79.02 | |||
| 250 | $ 66.03 | |||
Description
General part information
TMDC 40 Series
Enclosed DC DC Converter 1 Output 15V 2.67A 160V Input
