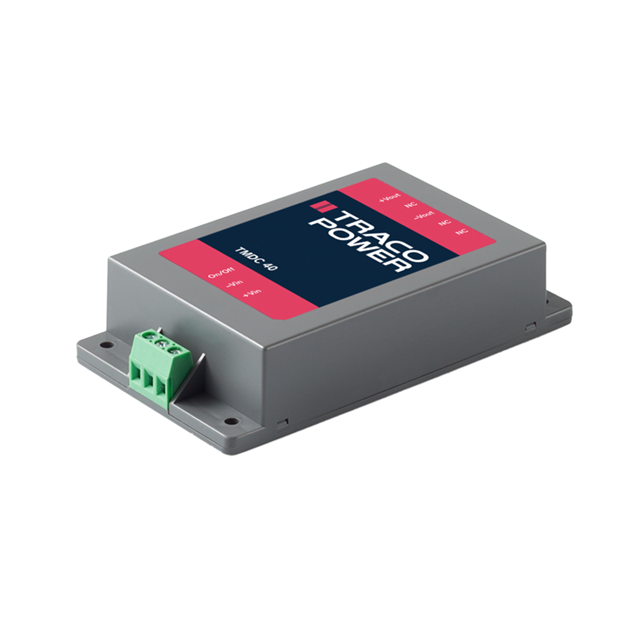

TMDC 40-4812
ActiveTraco Power
MODULE DC-DC 48VIN 1-OUT 12V 3.33A 40W 8-PIN
Deep-Dive with AI
Search across all available documentation for this part.
TMDC 40-4812
ActiveTraco Power
MODULE DC-DC 48VIN 1-OUT 12V 3.33A 40W 8-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMDC 40-4812 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) [Max] | 3.33 A |
| Efficiency | 91 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 112 mm |
| Size / Dimension [x] | 4.41 " |
| Size / Dimension [y] | 63.8 mm |
| Size / Dimension [y] | 2.51 " |
| Size / Dimension [z] | 25.7 mm |
| Size / Dimension [z] | 1.01 in |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2500 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TMDC 40 Series
Enclosed DC DC Converter 1 Output 12V 3.33A 75V Input
