SPM12565VT-6R8M-D
ActiveEPCOS - TDK Electronics

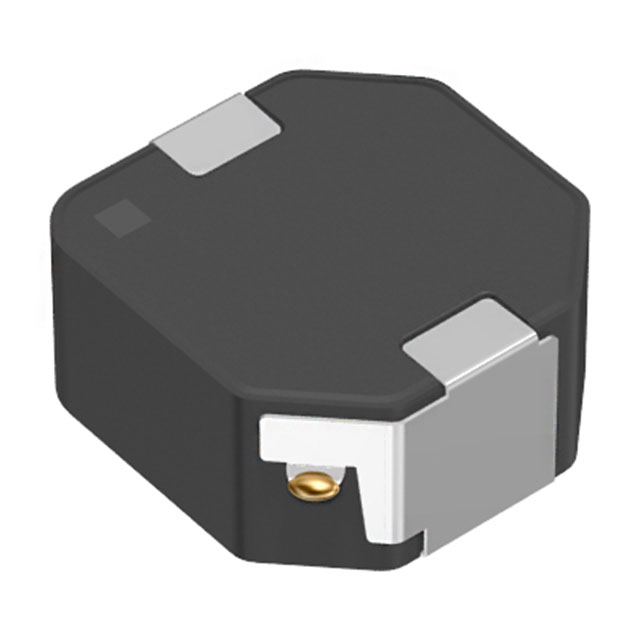

POW INDUCTOR, AEC-Q200, 6.8UH, SHLD/28.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SPM12565VT-6R8M-D
ActiveEPCOS - TDK Electronics
POW INDUCTOR, AEC-Q200, 6.8UH, SHLD/28.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM12565VT-6R8M-D |
|---|---|
| Current - Saturation (Isat) | 20.9 A |
| Current Rating (Amps) | 11.6 A |
| DC Resistance (DCR) | 10.3 mOhm |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [y] | 12.5 mm |
| Size / Dimension [y] | 0.492 " |
| Supplier Device Package | 1256 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
