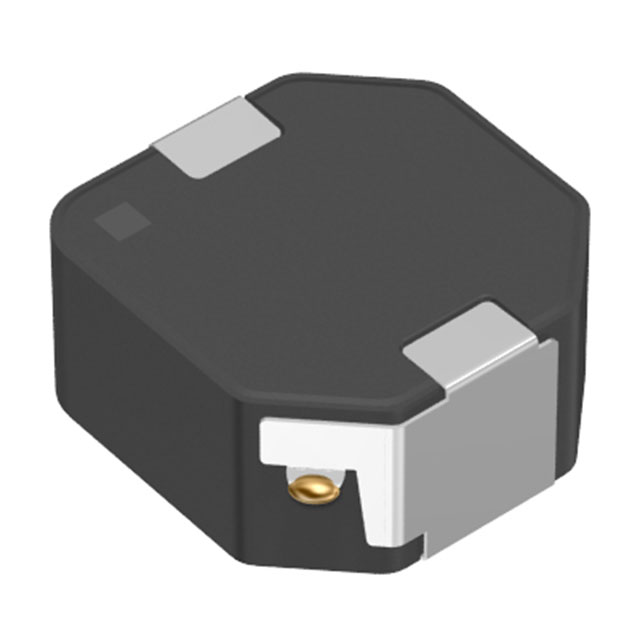

SPM12565VT-3R3M-D
ActiveEPCOS - TDK Electronics
POW INDUCTOR, AEC-Q200, 3.3UH, SHLD/34.6A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SPM12565VT-3R3M-D
ActiveEPCOS - TDK Electronics
POW INDUCTOR, AEC-Q200, 3.3UH, SHLD/34.6A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM12565VT-3R3M-D |
|---|---|
| Current - Saturation (Isat) | 25.5 A |
| Current Rating (Amps) | 16.8 A |
| DC Resistance (DCR) | 4.9 mOhm |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [y] | 12.5 mm |
| Size / Dimension [y] | 0.492 " |
| Supplier Device Package | 1256 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.53 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.46 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.72 | |||
| 250 | $ 2.64 | |||
| Digi-Reel® | 1 | $ 4.53 | ||
| 10 | $ 3.79 | |||
| 25 | $ 3.46 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.72 | |||
| 250 | $ 2.64 | |||
| Tape & Reel (TR) | 500 | $ 2.55 | ||
| 1000 | $ 2.39 | |||
| 2500 | $ 2.31 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 4.17 | |
| 10 | $ 2.46 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.37 | |||
| 100 | $ 2.33 | |||
| 250 | $ 2.15 | |||
| 1000 | $ 1.69 | |||
Description
General part information
SPM12565V Series
3.3 µH Shielded Drum Core, Wirewound Inductor 16.8 A 4.9mOhm Nonstandard
