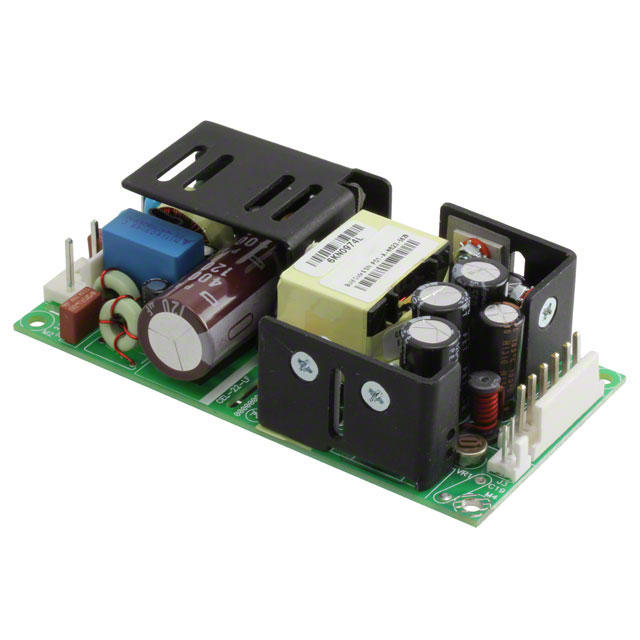

MBC40-3000G

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY TRIPLE-OUT 5.2V/12.5V/-12.8V 6A/2A/0.5A 40W MEDICAL

Deep-Dive with AI

Search across all available documentation for this part.

MBC40-3000G

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY TRIPLE-OUT 5.2V/12.5V/-12.8V 6A/2A/0.5A 40W MEDICAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MBC40-3000G

Applications	Medical
Current - Output 1	6 A
Current - Output 2	1 A
Current - Output 3	500 mA
Efficiency	85 %
Features	Universal Input, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	40 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5.2 V
Voltage - Output 2	12.5 V
Voltage - Output 3	-12.8 V

MBC40 Series

Part	Voltage - Output 1	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Type	Efficiency	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Voltage - Isolation	Power (Watts)	Current - Output 3	Voltage - Output 2	Current - Output 2	Voltage - Output 3
EOS Power India Private Ltd MBC40-1012G	12 V	Medical	Chassis Mount	-20 °C	70 °C	1	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	3.5 A	4.242 kV	40 W
EOS Power India Private Ltd MBC40-3002G	5.2 V	Medical	Chassis Mount	-20 °C	70 °C	3	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	6 A	4.242 kV	40 W	500 mA	14.6 V	1.5 A	-14.8 V
EOS Power India Private Ltd MBC40-1005G	5.1 V	Medical	Chassis Mount	-20 °C	70 °C	1	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	8 A	4.242 kV	40 W
EOS Power India Private Ltd MBC40-3001G-2	5.2 V	Medical	Chassis Mount	-20 °C	70 °C	3	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	6 A	4.242 kV	40 W	500 mA	24 V	1 A	-12.8 V
EOS Power India Private Ltd MBC40-1005G-2	5.1 V	Medical	Chassis Mount	-20 °C	70 °C	1	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	8 A	4.242 kV	40 W
EOS Power India Private Ltd MBC40-3002G-2	5.2 V	Medical	Chassis Mount	-20 °C	70 °C	3	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	6 A	4.242 kV	40 W	500 mA	14.6 V	1.5 A	-14.8 V
EOS Power India Private Ltd MBC40-1048G	48 V	Medical	Chassis Mount	-20 °C	70 °C	1	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	830 mA	4.242 kV	40 W
EOS Power India Private Ltd MBC40-1024G-2	24 V	Medical	Chassis Mount	-20 °C	70 °C	1	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	1.7 A	4.242 kV	40 W
EOS Power India Private Ltd MBC40-1015G-2	15 V	Medical	Chassis Mount	-20 °C	70 °C	1	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	2.7 A	4.242 kV	40 W
EOS Power India Private Ltd MBC40-3000G	5.2 V	Medical	Chassis Mount	-20 °C	70 °C	3	Open Frame	85 %	Adjustable Output Remote Sense Standby Output Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	90 VAC	264 VAC	6 A	4.242 kV	40 W	500 mA	12.5 V	1 A	-12.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 34.48

Description

General part information

MBC40 Series

Open Frame AC DC Converters 3 Output 5.2V 12.5V -12.8V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
