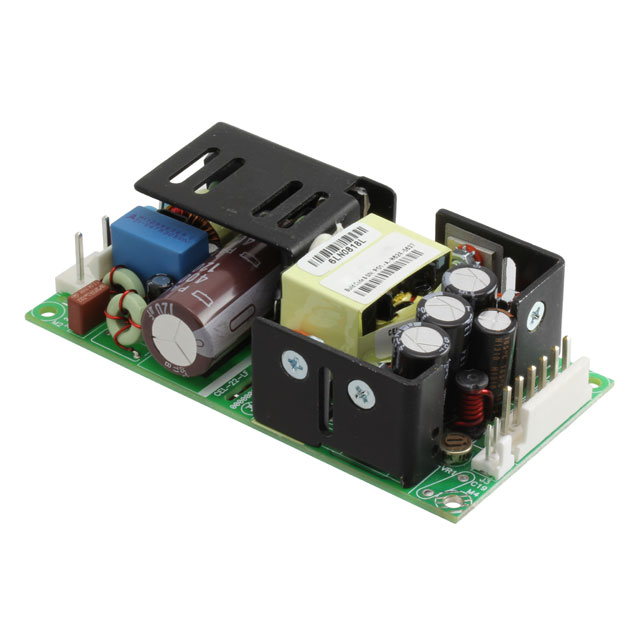

MBC40-3002G
ObsoleteEOS Power India Private Ltd
AC/DC CNVRTR 5.2V 14.6V -14.8V
Deep-Dive with AI
Search across all available documentation for this part.
MBC40-3002G
ObsoleteEOS Power India Private Ltd
AC/DC CNVRTR 5.2V 14.6V -14.8V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MBC40-3002G |
|---|---|
| Applications | Medical |
| Current - Output 1 | 6 A |
| Current - Output 2 | 1.5 A |
| Current - Output 3 | 500 mA |
| Efficiency | 85 % |
| Features | Universal Input, Standby Output, Adjustable Output, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 30.5 mm |
| Size / Dimension [z] | 1.2 " |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 5.2 V |
| Voltage - Output 2 | 14.6 V |
| Voltage - Output 3 | -14.8 V |
MBC40 Series
| Part | Voltage - Output 1 | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Type | Efficiency | Minimum Load Required | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Voltage - Isolation | Power (Watts) | Current - Output 3 | Voltage - Output 2 | Current - Output 2 | Voltage - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EOS Power India Private Ltd | 12 V | Medical | Chassis Mount | -20 °C | 70 °C | 1 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 3.5 A | 4.242 kV | 40 W | |||||
EOS Power India Private Ltd | 5.2 V | Medical | Chassis Mount | -20 °C | 70 °C | 3 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 6 A | 4.242 kV | 40 W | 500 mA | 14.6 V | 1.5 A | -14.8 V | |
EOS Power India Private Ltd | 5.1 V | Medical | Chassis Mount | -20 °C | 70 °C | 1 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 8 A | 4.242 kV | 40 W | |||||
EOS Power India Private Ltd | 5.2 V | Medical | Chassis Mount | -20 °C | 70 °C | 3 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 6 A | 4.242 kV | 40 W | 500 mA | 24 V | 1 A | -12.8 V | |
EOS Power India Private Ltd | 5.1 V | Medical | Chassis Mount | -20 °C | 70 °C | 1 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 8 A | 4.242 kV | 40 W | |||||
EOS Power India Private Ltd | 5.2 V | Medical | Chassis Mount | -20 °C | 70 °C | 3 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 6 A | 4.242 kV | 40 W | 500 mA | 14.6 V | 1.5 A | -14.8 V | |
EOS Power India Private Ltd | 48 V | Medical | Chassis Mount | -20 °C | 70 °C | 1 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 830 mA | 4.242 kV | 40 W | |||||
EOS Power India Private Ltd | 24 V | Medical | Chassis Mount | -20 °C | 70 °C | 1 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 1.7 A | 4.242 kV | 40 W | |||||
EOS Power India Private Ltd | 15 V | Medical | Chassis Mount | -20 °C | 70 °C | 1 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 2.7 A | 4.242 kV | 40 W | |||||
EOS Power India Private Ltd | 5.2 V | Medical | Chassis Mount | -20 °C | 70 °C | 3 | Open Frame | 85 % | Adjustable Output Remote Sense Standby Output Universal Input | 101.6 mm | 2 in | 30.5 mm | 4 in | 50.8 mm | 1.2 " | 90 VAC | 264 VAC | 6 A | 4.242 kV | 40 W | 500 mA | 12.5 V | 1 A | -12.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MBC40 Series
Open Frame AC DC Converters 3 Output 5.2V 14.6V -14.8V 90 ~ 264 VAC Input
