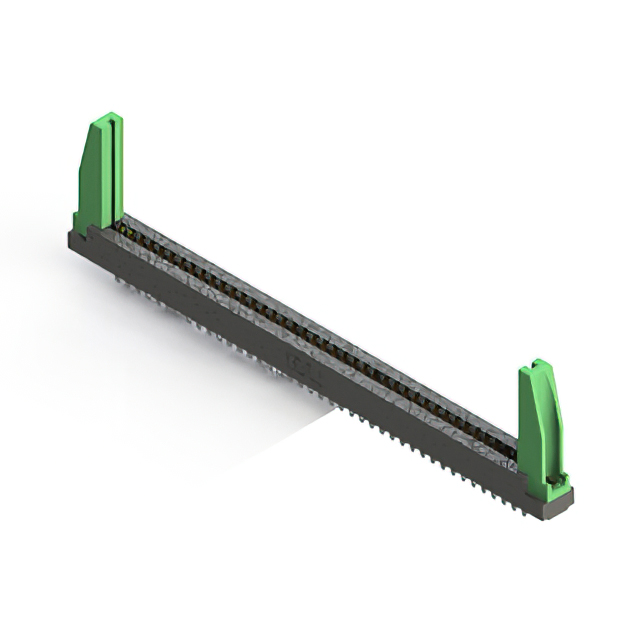

356-041-500-178

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-041-500-178

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-041-500-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

356-041 Series

Part	Gender	Contact Finish	Read Out	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Termination	Material - Insulation	Number of Positions	Color	Contact Material	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Features
EDAC Inc. 356-041-521-103	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever
EDAC Inc. 356-041-500-178	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder Eyelet(s)	Polyester Thermoplastic	82	Black	Copper Alloy		1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever	Card Guides
EDAC Inc. 356-041-521-107	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever
EDAC Inc. 356-041-521-168	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever	Card Guides
EDAC Inc. 356-041-520-107	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever
EDAC Inc. 356-041-521-101	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm				Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever
EDAC Inc. 356-041-520-101	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm				Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever
EDAC Inc. 356-041-520-108	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever
EDAC Inc. 356-041-421-112	Female	Tin	Dual			1	Solder	Polyester Thermoplastic	82	Black	Copper Alloy	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever
EDAC Inc. 356-041-500-107	Female	Gold	Dual	10 Áin	0.25 Ám	1	Solder Eyelet(s)	Polyester Thermoplastic	82	Black	Copper Alloy		1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Dual Edge	-40 °C	105 ░C	2	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 24.81
Newark	Each	1	$ 27.91
		100	$ 17.62
		250	$ 14.13
		500	$ 12.77
		1000	$ 10.84

Description

General part information

356-041 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
