356-041-521-107
ActiveEDAC Inc.

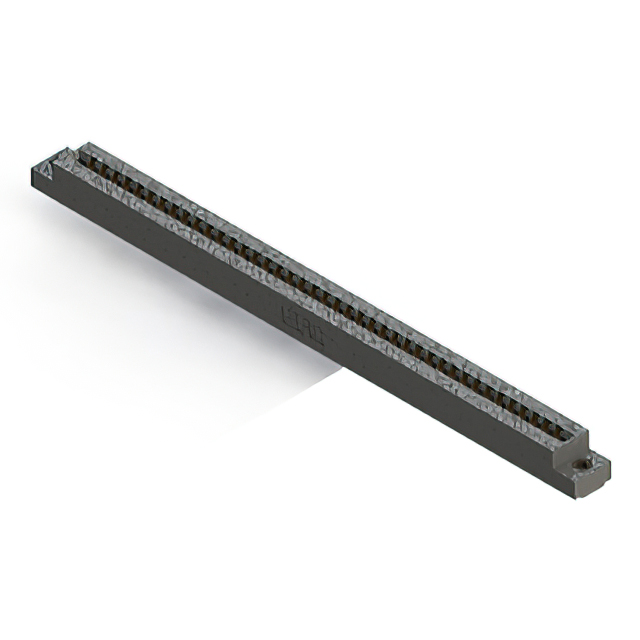

CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-041-521-107
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-041-521-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-041 Series
| Part | Gender | Contact Finish | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Termination | Material - Insulation | Number of Positions | Color | Contact Material | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | |
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder Eyelet(s) | Polyester Thermoplastic | 82 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | Card Guides | |||
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | |||
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | Card Guides | ||
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | |||
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | ||||
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | ||||
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | |||
EDAC Inc. | Female | Tin | Dual | 1 | Solder | Polyester Thermoplastic | 82 | Black | Copper Alloy | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever | |||
EDAC Inc. | Female | Gold | Dual | 10 Áin | 0.25 Ám | 1 | Solder Eyelet(s) | Polyester Thermoplastic | 82 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 21.55 | |
Description
General part information
356-041 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
