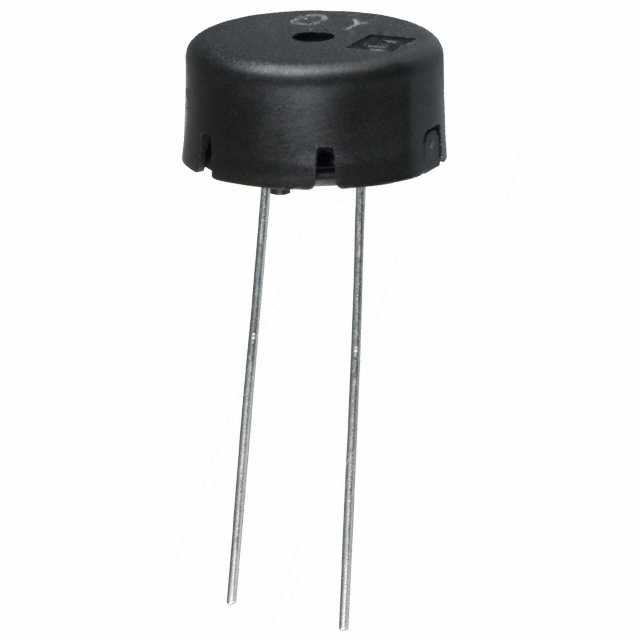

PKM13EPYH4000-A0
ActiveMurata Power Solutions Inc.
BUZZER PIEZO 1.5V 12.6MM TH
Deep-Dive with AI
Search across all available documentation for this part.
PKM13EPYH4000-A0
ActiveMurata Power Solutions Inc.
BUZZER PIEZO 1.5V 12.6MM TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PKM13EPYH4000-A0 |
|---|---|
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] | 7.4 mm |
| Height - Seated (Max) [Max] | 0.291 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Ringer |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Size / Dimension [diameter] | 0.496 in |
| Size / Dimension [diameter] | 12.6 mm |
| Sound Pressure Level (SPL) | 70 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 1.5 VDC |
| Voltage Range [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| Tape & Box (TB) | 500 | $ 0.24 | ||
| 1000 | $ 0.23 | |||
| 1500 | $ 0.22 | |||
| 2500 | $ 0.21 | |||
| 3500 | $ 0.21 | |||
| 5000 | $ 0.20 | |||
| 12500 | $ 0.18 | |||
Description
General part information
PKM13EPY Series
Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 70dB @ 1.5V, 10cm Through Hole PC Pins
