PKM13EPYH4002-B0

Active

Murata Power Solutions Inc.

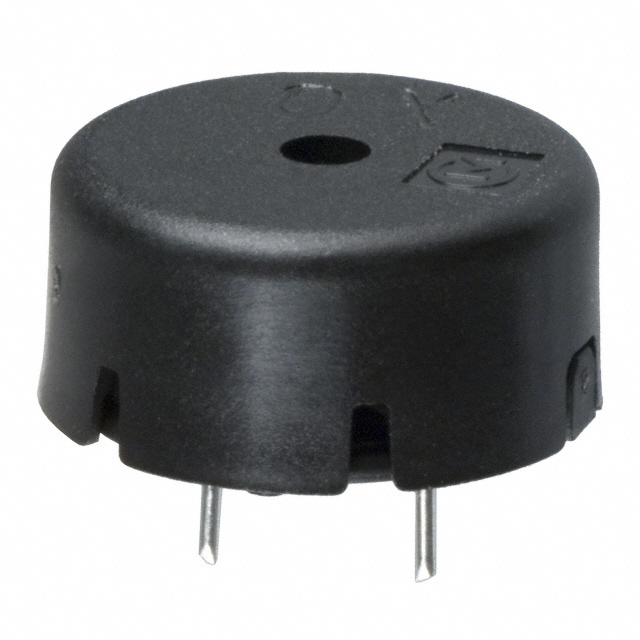

BUZZER PIEZO 1.5V 12.6MM TH

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

BUZZER PIEZO 1.5V 12.6MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	PKM13EPYH4002-B0

Driver Circuitry	Externally Driven, Transducer
Frequency	4 kHz
Height - Seated (Max) [Max]	7.4 mm
Height - Seated (Max) [Max]	0.291 in
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Ringer
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Top
Size / Dimension [diameter]	0.496 in
Size / Dimension [diameter]	12.6 mm
Sound Pressure Level (SPL)	70 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	1.5 VDC
Voltage Range [Max]	30 V

Part	Mounting Type	Frequency	Sound Pressure Level (SPL)	Technology	Input Type	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	Voltage Range [Max]	Driver Circuitry
Murata Power Solutions Inc. PKM13EPYH4002-B0	Through Hole	4 kHz	70 dB	Piezo	Zero-Peak Signal	1.5 VDC	7.4 mm	0.291 in	PC Pins	Top	0.496 in	12.6 mm	85 °C	-40 °C	Ringer	30 V	Externally Driven Transducer
Murata Power Solutions Inc. PKM13EPYH4000-A0	Through Hole	4 kHz	70 dB	Piezo	Zero-Peak Signal	1.5 VDC	7.4 mm	0.291 in	PC Pins	Top	0.496 in	12.6 mm	85 °C	-40 °C	Ringer	30 V	Externally Driven Transducer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 70dB @ 1.5V, 10cm Through Hole PC Pins
