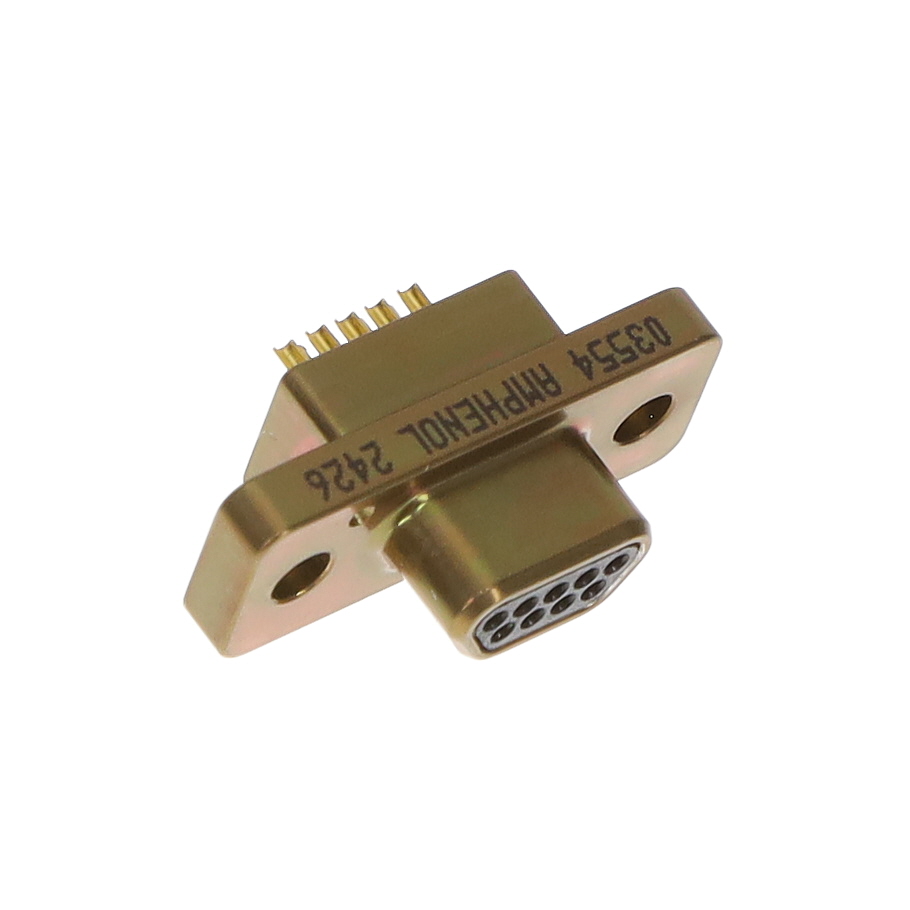

M83513/01-AC
ActiveCinch Connectivity Solutions Trompeter
9 POS PLUG SOLDER CUP CD PLTD
Deep-Dive with AI
Search across all available documentation for this part.
M83513/01-AC
ActiveCinch Connectivity Solutions Trompeter
9 POS PLUG SOLDER CUP CD PLTD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/01-AC |
|---|---|
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Chromate Plated Cadmium, Aluminum Alloy |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 60.59 | |
| 10 | $ 46.97 | |||
| 25 | $ 42.66 | |||
| 50 | $ 39.75 | |||
| 100 | $ 37.11 | |||
| 250 | $ 34.01 | |||
| Bulk | 1 | $ 329.91 | ||
| 1 | $ 78.93 | |||
| 10 | $ 72.43 | |||
| 25 | $ 69.64 | |||
| 50 | $ 67.32 | |||
| 100 | $ 63.61 | |||
Description
General part information
M83513/01 Series
9 Position D-Type, Micro-D Plug, Male Pins Connector
Documents
Technical documentation and resources
No documents available
