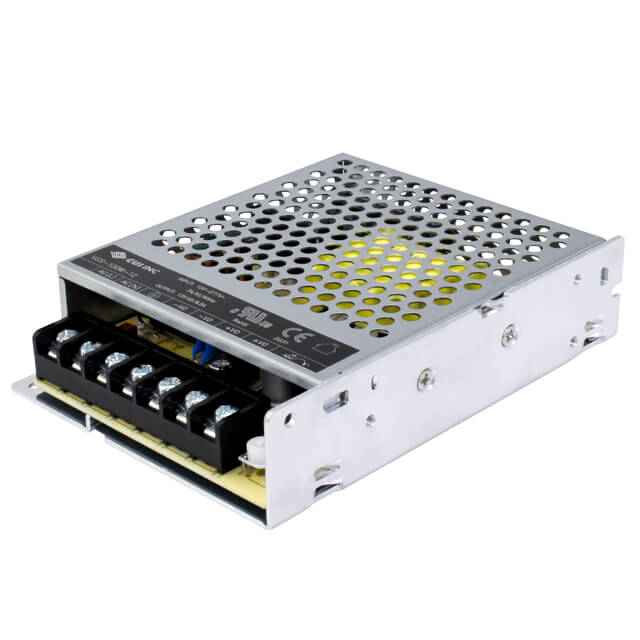

VGS-100W-5-B

CUI Inc.

AC/DC CONVERTER 5V 90W

Deep-Dive with AI

Search across all available documentation for this part.

VGS-100W-5-B

CUI Inc.

AC/DC CONVERTER 5V 90W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VGS-100W-5-B

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	18 A
Efficiency	85.5 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	90 W
Size / Dimension [x]	129 mm
Size / Dimension [x]	5.08 in
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	60335-1, 62368-1
Type	Conformal Coated, Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

VGS-100 Series

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Power (Watts)	Type	Voltage - Output 1	Standard Number	Approval Agency	Applications	Current - Output 1	Features	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency
CUI Inc. VGS-100W-24-A	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A
CUI Inc. VGS-100B-12	Chassis Mount	30 mm	129 mm	5.08 in	3.84 in	1.18 in	97.5 mm	70 °C	-20 °C	1.5 kV	1	100 W	Enclosed	12 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	8.3 A	Adjustable Output Universal Input	90 VAC	264 VAC	85 %
CUI Inc. VGS-100C-24-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Conformal Coated Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	90 %
CUI Inc. VGS-100W-36-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	101 W	Conformal Coated Enclosed	36 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	2.8 A
CUI Inc. VGS-100W-24-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Conformal Coated Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A
CUI Inc. VGS-100C-48-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	110 W	Conformal Coated Enclosed	48 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	2.3 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	91 %
CUI Inc. VGS-100C-24	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	90 %
CUI Inc. VGS-100C-24-A	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	108 W	Enclosed	24 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	4.5 A	Adjustable Output Universal Input	85 VAC 120 VDC	264 VAC 373 VDC	90 %
CUI Inc. VGS-100W-48	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	110 W	Enclosed	48 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	2.3 A				90.5 %
CUI Inc. VGS-100W-5-B	Chassis Mount	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	4000 V	1	90 W	Conformal Coated Enclosed	5 V	60335-1 62368-1	CE cURus	Household Appliances ITE (Commercial)	18 A				85.5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	36	$ 24.69

Description

General part information

VGS-100 Series

Enclosed, Conformal Coated AC DC Converters 1 Output 5V 85 ~ 305 VAC, 120 ~ 431 VDC Input

Documents

Technical documentation and resources

No documents available
