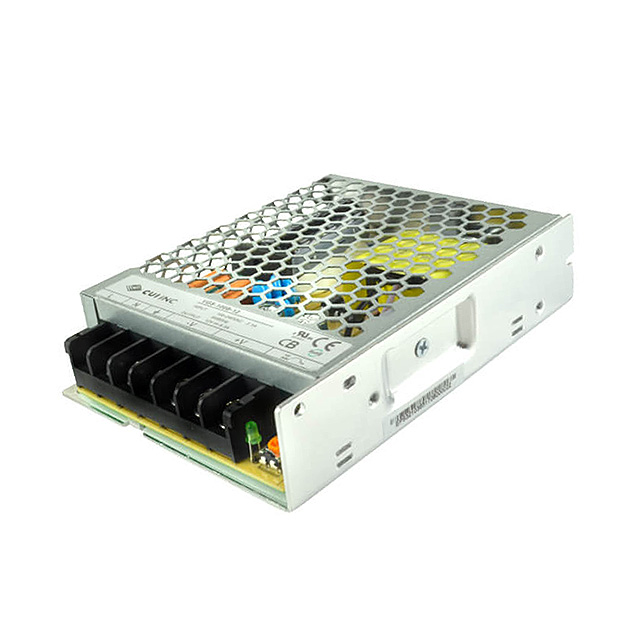

VGS-100B-12
ObsoleteCUI Inc.
AC/DC CONVERTER 12V 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VGS-100B-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | SIQ, CB Scheme, EN, UL, TUV, IEC, FCC |
| Current - Output 1 | 8.3 A |
| Efficiency | 85 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 5.08 in |
| Size / Dimension [x] | 129 mm |
| Size / Dimension [y] | 97.5 mm |
| Size / Dimension [y] | 3.84 in |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Standard Number | 55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
VGS-100 Series
| Part | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Number of Outputs | Power (Watts) | Type | Voltage - Output 1 | Standard Number | Approval Agency | Applications | Current - Output 1 | Features | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 108 W | Enclosed | 24 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | ||||
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.84 in | 1.18 in | 97.5 mm | 70 °C | -20 °C | 1.5 kV | 1 | 100 W | Enclosed | 12 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 8.3 A | Adjustable Output Universal Input | 90 VAC | 264 VAC | 85 % |
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 108 W | Conformal Coated Enclosed | 24 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 373 VDC | 90 % |
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 101 W | Conformal Coated Enclosed | 36 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 2.8 A | ||||
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 108 W | Conformal Coated Enclosed | 24 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | ||||
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 110 W | Conformal Coated Enclosed | 48 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 2.3 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 373 VDC | 91 % |
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 108 W | Enclosed | 24 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 373 VDC | 90 % |
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 108 W | Enclosed | 24 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 4.5 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 373 VDC | 90 % |
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 110 W | Enclosed | 48 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 2.3 A | 90.5 % | |||
CUI Inc. | Chassis Mount | 30 mm | 129 mm | 5.08 in | 3.82 in | 1.18 in | 97 mm | 70 °C | -30 °C | 4000 V | 1 | 90 W | Conformal Coated Enclosed | 5 V | 60335-1 62368-1 | CE cURus | Household Appliances ITE (Commercial) | 18 A | 85.5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.12 | |
| 5 | $ 34.97 | |||
| 10 | $ 34.09 | |||
| 25 | $ 32.95 | |||
| 50 | $ 32.11 | |||
| 100 | $ 31.30 | |||
Description
General part information
VGS-100 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
