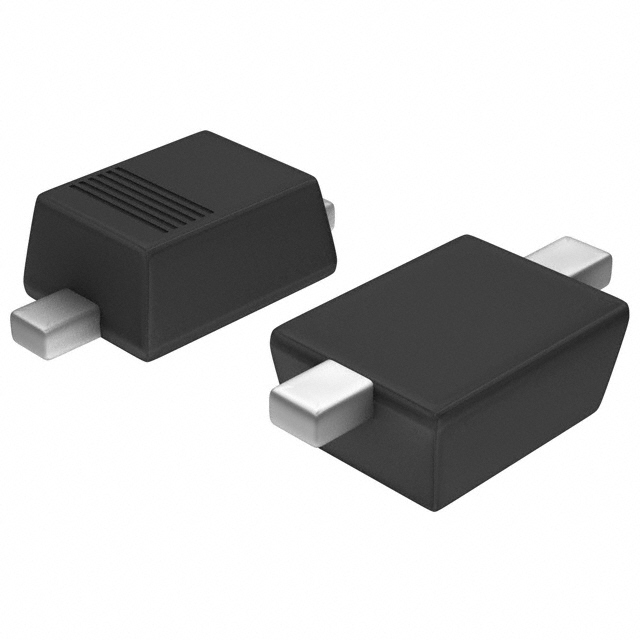

1N4448WSF-7

Active

Diodes Inc

DIODE GEN PURP 75V 250MA SOD323F

Search across all available documentation for this part.

Active

Diodes Inc

DIODE GEN PURP 75V 250MA SOD323F

Technical Specifications

Parameters and characteristics for this part

Specification	1N4448WSF-7

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	250 mA
Current - Reverse Leakage @ Vr	2.5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOD-323F, SC-90
Reverse Recovery Time (trr)	4 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-323F
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

switching diode

Part	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Mounting Type	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Qualification	Grade
Diodes Inc 1N4448HWT-7	3 pF	100 nA	125 mA	Any Speed	200 mA	1 V	SC-79 SOD-523	Standard	Surface Mount	4 ns	80 V	SOD-523	150 °C	-65 C
Diodes Inc 1N4448HWT-7-G
Diodes Inc 1N4448HWS-7-F	3.5 pF	100 nA	250 mA		200 mA 500 ns		SC-76 SOD-323	Standard	Surface Mount	4 ns	80 V	SOD-323	150 °C	-65 C	1.25 V
Diodes Inc 1N4448W-7	4 pF	2.5 µA	250 mA		200 mA 500 ns		SOD-123	Standard	Surface Mount	4 ns	75 V	SOD-123	150 °C	-65 C	1.25 V
Diodes Inc 1N4448WSF-7	4 pF	2.5 µA	250 mA		200 mA 500 ns		SC-90 SOD-323F	Standard	Surface Mount	4 ns	75 V	SOD-323F	150 °C	-65 C	1.25 V
Diodes Inc 1N4448WSFQ-7	4 pF	2.5 µA	250 mA		200 mA 500 ns		SC-90 SOD-323F	Standard	Surface Mount	4 ns	75 V	SOD-323F	150 °C	-65 C	1.25 V	AEC-Q101	Automotive
Diodes Inc 1N4448HWS-13-F	3.5 pF	100 nA	250 mA		200 mA 500 ns		SC-76 SOD-323	Standard	Surface Mount	4 ns	80 V	SOD-323	150 °C	-65 C	1.25 V
Diodes Inc 1N4448WS-7-F	4 pF	2.5 µA	250 mA		200 mA 500 ns		SC-76 SOD-323	Standard	Surface Mount	4 ns	75 V	SOD-323	150 °C	-65 C	1.25 V
Diodes Inc 1N4448HLP-7B
Diodes Inc 1N4448HLP-7	3 pF	100 nA	125 mA	Any Speed	200 mA	1 V	0402 (1006 Metric)	Standard	Surface Mount	4 ns	80 V	X1-DFN1006-2	150 °C	-65 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

switching diode
