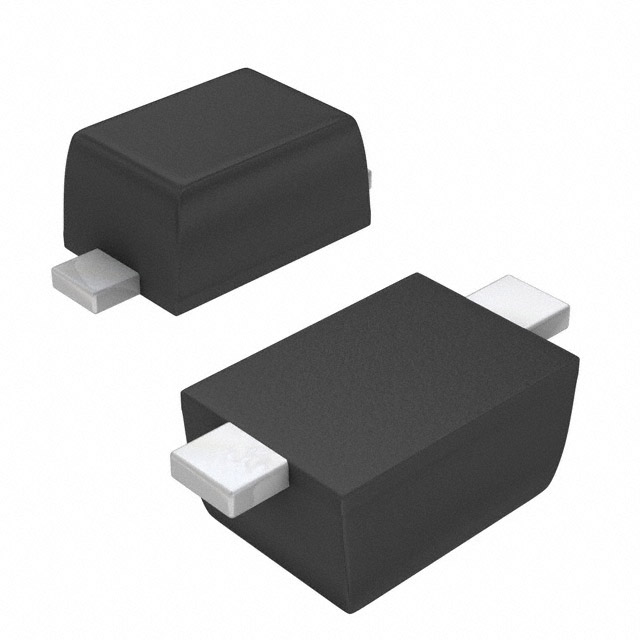

1N4448HWT-7

Active

Diodes Inc

SMALL SIGNAL SWITCHING DIODE, SINGLE, 80 V, 125 MA, 1.25 V, 4 NS, 2 A, SOD-523, 2 PINS

Search across all available documentation for this part.

Active

Diodes Inc

SMALL SIGNAL SWITCHING DIODE, SINGLE, 80 V, 125 MA, 1.25 V, 4 NS, 2 A, SOD-523, 2 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	1N4448HWT-7

Capacitance @ Vr, F	3 pF
Current - Average Rectified (Io)	125 mA
Current - Reverse Leakage @ Vr	100 nA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SC-79, SOD-523
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-523
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	80 V
Voltage - Forward (Vf) (Max) @ If	1 V

switching diode

Part	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Mounting Type	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Qualification	Grade
Diodes Inc 1N4448HWT-7	3 pF	100 nA	125 mA	Any Speed	200 mA	1 V	SC-79 SOD-523	Standard	Surface Mount	4 ns	80 V	SOD-523	150 °C	-65 C
Diodes Inc 1N4448HWT-7-G
Diodes Inc 1N4448HWS-7-F	3.5 pF	100 nA	250 mA		200 mA 500 ns		SC-76 SOD-323	Standard	Surface Mount	4 ns	80 V	SOD-323	150 °C	-65 C	1.25 V
Diodes Inc 1N4448W-7	4 pF	2.5 µA	250 mA		200 mA 500 ns		SOD-123	Standard	Surface Mount	4 ns	75 V	SOD-123	150 °C	-65 C	1.25 V
Diodes Inc 1N4448WSF-7	4 pF	2.5 µA	250 mA		200 mA 500 ns		SC-90 SOD-323F	Standard	Surface Mount	4 ns	75 V	SOD-323F	150 °C	-65 C	1.25 V
Diodes Inc 1N4448WSFQ-7	4 pF	2.5 µA	250 mA		200 mA 500 ns		SC-90 SOD-323F	Standard	Surface Mount	4 ns	75 V	SOD-323F	150 °C	-65 C	1.25 V	AEC-Q101	Automotive
Diodes Inc 1N4448HWS-13-F	3.5 pF	100 nA	250 mA		200 mA 500 ns		SC-76 SOD-323	Standard	Surface Mount	4 ns	80 V	SOD-323	150 °C	-65 C	1.25 V
Diodes Inc 1N4448WS-7-F	4 pF	2.5 µA	250 mA		200 mA 500 ns		SC-76 SOD-323	Standard	Surface Mount	4 ns	75 V	SOD-323	150 °C	-65 C	1.25 V
Diodes Inc 1N4448HLP-7B
Diodes Inc 1N4448HLP-7	3 pF	100 nA	125 mA	Any Speed	200 mA	1 V	0402 (1006 Metric)	Standard	Surface Mount	4 ns	80 V	X1-DFN1006-2	150 °C	-65 C
