RTS1BS14N12S03

Active

Amphenol Sine Systems Corp

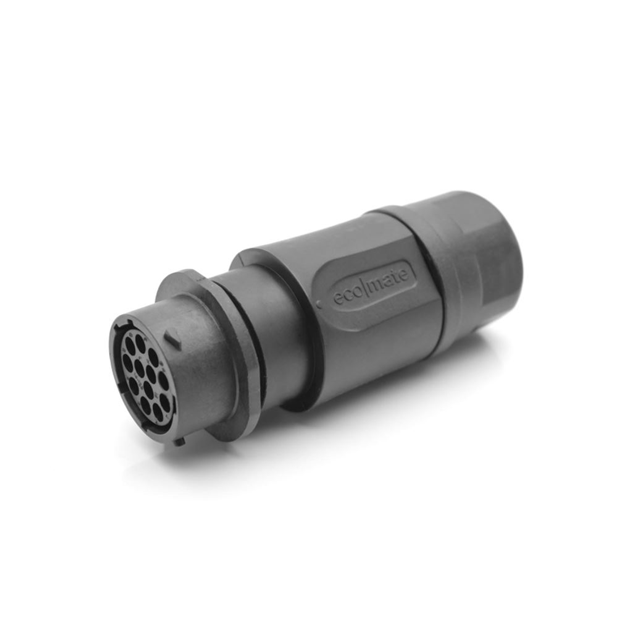

CONN RCPT HSG FMALE 12POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

RTS1BS14N12S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 12POS INLINE

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS1BS14N12S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Includes	6 pcs - 1 Connector, 1 Backshell, 1 Clamp Ring, 1 Nut, 1 O-Ring, 1 Seal
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	14-12
Shielding	Unshielded
Type	For Female Sockets

RTS1BS14 Series

Part	Type	Note	Fastening Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Features	Orientation	Contact Type	Contact Size	Insert Material	Shielding	Number of Positions	Connector Type	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Ingress Protection	Includes	Material Flammability Rating	Mounting Type	Shell Size - Insert
Amphenol Sine Systems Corp RTS1BS14N7P03	For Male Pins	Contacts Not Included	Bayonet Lock	14	7	Backshell	N	Crimp	16	Thermoplastic	Unshielded	7	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)
Amphenol Sine Systems Corp RTS1BS14N7S03	For Female Sockets	Contacts Not Included	Bayonet Lock	14	7	Backshell	N	Crimp	16	Thermoplastic	Unshielded	7	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)
Amphenol Sine Systems Corp RTS1BS14N12SHEC03	For Female Sockets	Contacts Not Included	Bayonet Lock				N	Crimp	16	Thermoplastic	Unshielded	12	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	1 Connector 1 Gasket 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)	14-12
Amphenol Sine Systems Corp RTS1BS14N3S03	For Female Sockets	Contacts Not Included	Bayonet Lock			Backshell	N	Crimp	8	Thermoplastic	Unshielded		Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)	14-3
Amphenol Sine Systems Corp RTS1BS14N8S03	For Female Sockets	Contacts Not Included	Bayonet Lock			Backshell	N	Crimp	16	Thermoplastic	Unshielded	8	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)	14-8
Amphenol Sine Systems Corp RTS1BS14N4P03	For Male Pins	Contacts Not Included	Bayonet Lock	14	4	Backshell	N	Crimp	2.5 mm	Thermoplastic	Unshielded	4	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)
Amphenol Sine Systems Corp RTS1BS14N2P03	For Male Pins	Contacts Not Included	Bayonet Lock			Backshell	N	Crimp		Thermoplastic	Unshielded	4	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)	14-2
Amphenol Sine Systems Corp RTS1BS14N12S03	For Female Sockets	Contacts Not Included	Bayonet Lock			Backshell	N	Crimp	16	Thermoplastic	Unshielded	12	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)	14-12
Amphenol Sine Systems Corp RTS1BS14N12P03	For Male Pins	Contacts Not Included	Bayonet Lock			Backshell	N	Crimp	16	Thermoplastic	Unshielded	12	Receptacle Housing	Circular	125 °C	-40 °C	Black	IP67 IP69K	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	UL94 V-0	Free Hanging (In-Line)	14-12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.47
		10	$ 7.50
		25	$ 7.22
		50	$ 6.93
		200	$ 6.78

Description

General part information

RTS1BS14 Series

12 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
