RTS1BS14N7P03
ActiveAmphenol Sine Systems Corp

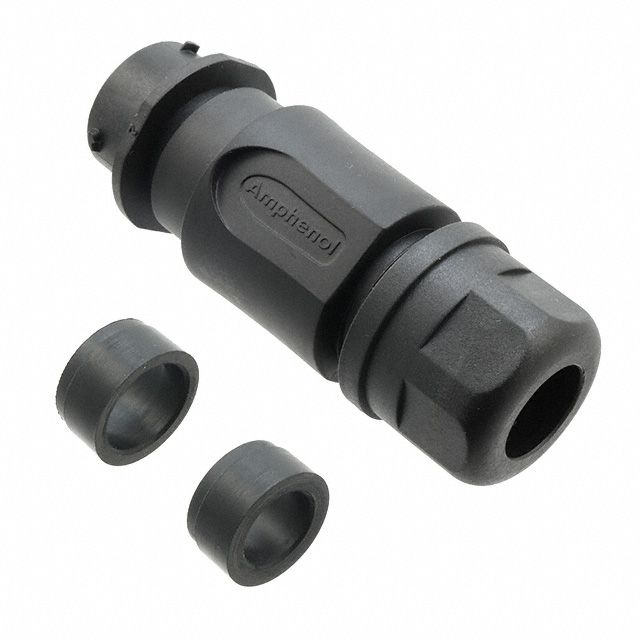

CONN RCPT HSG MALE 7POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
RTS1BS14N7P03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 7POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS1BS14N7P03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Includes | 6 pcs - 1 Connector, 1 Backshell, 1 Clamp Ring, 1 Nut, 1 O-Ring, 1 Seal |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert [Max] | 14 |
| Shell Size - Insert [Min] | 7 |
| Shielding | Unshielded |
| Type | For Male Pins |
RTS1BS14 Series
| Part | Type | Note | Fastening Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Features | Orientation | Contact Type | Contact Size | Insert Material | Shielding | Number of Positions | Connector Type | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Ingress Protection | Includes | Material Flammability Rating | Mounting Type | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | For Male Pins | Contacts Not Included | Bayonet Lock | 14 | 7 | Backshell | N | Crimp | 16 | Thermoplastic | Unshielded | 7 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | |
Amphenol Sine Systems Corp | For Female Sockets | Contacts Not Included | Bayonet Lock | 14 | 7 | Backshell | N | Crimp | 16 | Thermoplastic | Unshielded | 7 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | |
Amphenol Sine Systems Corp | For Female Sockets | Contacts Not Included | Bayonet Lock | N | Crimp | 16 | Thermoplastic | Unshielded | 12 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 1 Connector 1 Gasket 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | 14-12 | |||
Amphenol Sine Systems Corp | For Female Sockets | Contacts Not Included | Bayonet Lock | Backshell | N | Crimp | 8 | Thermoplastic | Unshielded | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | 14-3 | |||
Amphenol Sine Systems Corp | For Female Sockets | Contacts Not Included | Bayonet Lock | Backshell | N | Crimp | 16 | Thermoplastic | Unshielded | 8 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | 14-8 | ||
Amphenol Sine Systems Corp | For Male Pins | Contacts Not Included | Bayonet Lock | 14 | 4 | Backshell | N | Crimp | 2.5 mm | Thermoplastic | Unshielded | 4 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | |
Amphenol Sine Systems Corp | For Male Pins | Contacts Not Included | Bayonet Lock | Backshell | N | Crimp | Thermoplastic | Unshielded | 4 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | 14-2 | |||
Amphenol Sine Systems Corp | For Female Sockets | Contacts Not Included | Bayonet Lock | Backshell | N | Crimp | 16 | Thermoplastic | Unshielded | 12 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | 14-12 | ||
Amphenol Sine Systems Corp | For Male Pins | Contacts Not Included | Bayonet Lock | Backshell | N | Crimp | 16 | Thermoplastic | Unshielded | 12 | Receptacle Housing | Circular | 125 °C | -40 °C | Black | IP67 IP69K | 6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal | UL94 V-0 | Free Hanging (In-Line) | 14-12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.89 | |
| 10 | $ 6.99 | |||
| 25 | $ 6.72 | |||
| 50 | $ 6.45 | |||
| 200 | $ 6.31 | |||
Description
General part information
RTS1BS14 Series
7 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
