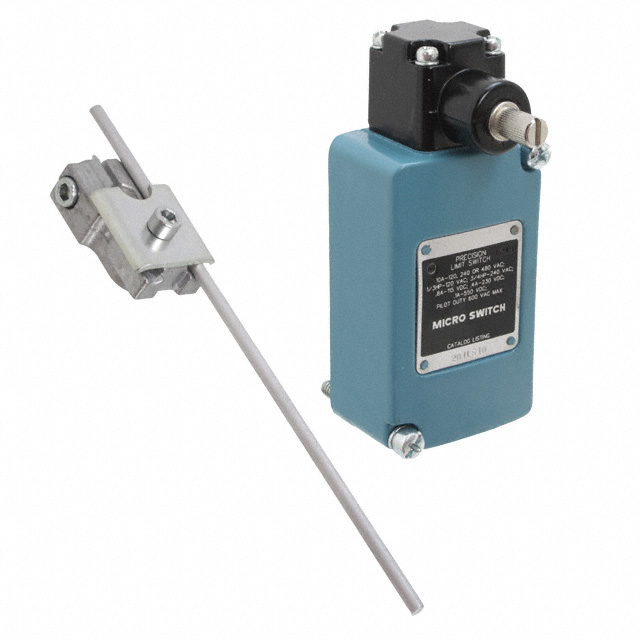

201LS10
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
201LS10
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 201LS10 |
|---|---|
| Actuator Type | Side Rotary, Adjustable Rod |
| Circuit | SPDT (DB/DM) |
| Current Rating (Amps) | 10 A, 800 mA |
| Differential Travel | 12 ° |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 51 gfm |
| Operating Position [custom] | 20 ° |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -29 °C |
| Overtravel | 30 ° |
| Pretravel | 20 ° |
| Release Force | 8.64 gfm |
| Switch Function | On-Mom |
| Termination Style | Plug In |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 115 V |
201LS Series
| Part | Features | Voltage Rating - DC | Circuit | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Overtravel | Current Rating (Amps) | Actuator Type | Differential Travel | Pretravel | Release Force | Ingress Protection | Voltage Rating - AC | Termination Style | Switch Function | Mounting Type | Operating Position [custom] | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | Front Mounted Nylon Roller | 115 V | SPDT (DB/DM) | 51 gfm | -29 °C | 71 °C | 30 ° | 10 A 800 mA | Side Rotary Adjustable Roller | 12 ° | 20 ° | 8.64 gfm | IP67 - Dust Tight Waterproof | 120 V | Plug In | On-Mom | Chassis Mount | 20 ° | |
Honeywell Sensing and Productivity Solutions | 115 V | SPDT (DB/DM) | 21 gfm | -29 °C | 71 °C | 30 ° | 10 A 800 mA | Side Rotary - No Lever | 12 ° | 20 ° | 2.88 gf | IP67 - Dust Tight Waterproof | 120 V | Plug In | On-Mom | Chassis Mount | 20 ° | ||
Honeywell Sensing and Productivity Solutions | SPDT (DB/DM) | 11 gfm | -29 °C | 71 °C | 30 ° | 10 A | Side Rotary Adjustable Rod | 5 ° | 2.07 gf | IP67 - Dust Tight Waterproof | 120 V | Plug In | On-Mom | Chassis Mount | 5 ° | ||||
Honeywell Sensing and Productivity Solutions | SPDT (DB/DM) | 51 gfm | -29 °C | 71 °C | 30 ° | 10 A | Side Rotary - No Lever | 12 ° | 20 ° | 8.64 gfm | IP67 - Dust Tight Waterproof | 120 V | Plug In | On-Mom | Chassis Mount | 20 ° | |||
Honeywell Sensing and Productivity Solutions | Front Mounted Steel Roller | 115 V | SPDT (DB/DM) | 51 gfm | -29 °C | 121 °C | 30 ° | 10 A 800 mA | Roller Side Rotary | 12 ° | 20 ° | 8.64 gfm | IP67 - Dust Tight Waterproof | 120 V | Plug In | On-Mom | Chassis Mount | 20 ° | |
Honeywell Sensing and Productivity Solutions | 115 V | SPDT (DB/DM) | 51 gfm | -29 °C | 71 °C | 30 ° | 10 A 800 mA | Side Rotary Adjustable Rod | 12 ° | 20 ° | 8.64 gfm | IP67 - Dust Tight Waterproof | 120 V | Plug In | On-Mom | Chassis Mount | 20 ° | ||
Honeywell Sensing and Productivity Solutions | 115 V | SPDT (DB/DM) | 51 gfm | -29 °C | 71 °C | 30 ° | 10 A 800 mA | Side Rotary - No Lever | 12 ° | 20 ° | 8.64 gfm | IP67 - Dust Tight Waterproof | 120 V | Plug In | On-Mom | Chassis Mount | 20 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 377.17 | |
Description
General part information
201LS Series
Switch SPDT (DB/DM) Chassis Mount
