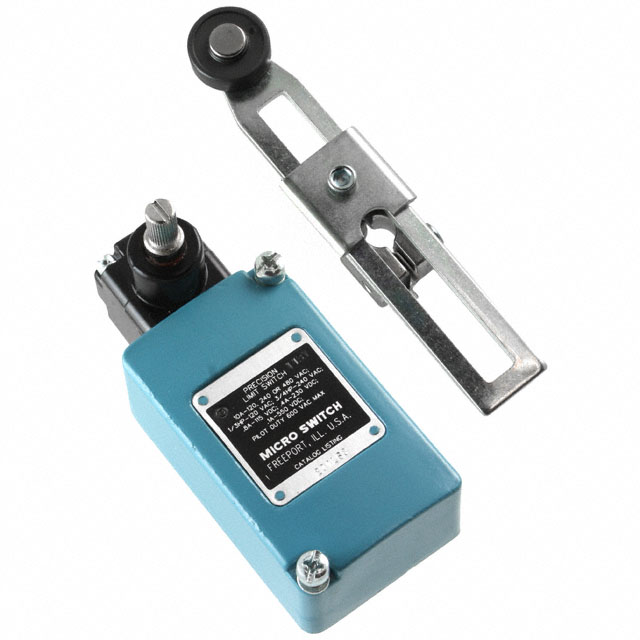

201LS3

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

201LS3

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	201LS3

Actuator Type	Side Rotary, Adjustable Roller
Circuit	SPDT (DB/DM)
Current Rating (Amps)	10 A, 800 mA
Differential Travel	12 °
Features	Front Mounted, Nylon Roller
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Chassis Mount
Operating Force	51 gfm
Operating Position [custom]	20 °
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-29 °C
Overtravel	30 °
Pretravel	20 °
Release Force	8.64 gfm
Switch Function	On-Mom
Termination Style	Plug In
Voltage Rating - AC	120 V
Voltage Rating - DC	115 V

201LS Series

Part	Features	Voltage Rating - DC	Circuit	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Current Rating (Amps)	Actuator Type	Differential Travel	Pretravel	Release Force	Ingress Protection	Voltage Rating - AC	Termination Style	Switch Function	Mounting Type	Operating Position [custom]	Operating Position
Honeywell Sensing and Productivity Solutions 201LS3	Front Mounted Nylon Roller	115 V	SPDT (DB/DM)	51 gfm	-29 °C	71 °C	30 °	10 A 800 mA	Side Rotary Adjustable Roller	12 °	20 °	8.64 gfm	IP67 - Dust Tight Waterproof	120 V	Plug In	On-Mom	Chassis Mount	20 °
Honeywell Sensing and Productivity Solutions 201LS23		115 V	SPDT (DB/DM)	21 gfm	-29 °C	71 °C	30 °	10 A 800 mA	Side Rotary - No Lever	12 °	20 °	2.88 gf	IP67 - Dust Tight Waterproof	120 V	Plug In	On-Mom	Chassis Mount	20 °
Honeywell Sensing and Productivity Solutions 201LS51			SPDT (DB/DM)	11 gfm	-29 °C	71 °C	30 °	10 A	Side Rotary Adjustable Rod		5 °	2.07 gf	IP67 - Dust Tight Waterproof	120 V	Plug In	On-Mom	Chassis Mount		5 °
Honeywell Sensing and Productivity Solutions 201LS502			SPDT (DB/DM)	51 gfm	-29 °C	71 °C	30 °	10 A	Side Rotary - No Lever	12 °	20 °	8.64 gfm	IP67 - Dust Tight Waterproof	120 V	Plug In	On-Mom	Chassis Mount	20 °
Honeywell Sensing and Productivity Solutions 201LS242	Front Mounted Steel Roller	115 V	SPDT (DB/DM)	51 gfm	-29 °C	121 °C	30 °	10 A 800 mA	Roller Side Rotary	12 °	20 °	8.64 gfm	IP67 - Dust Tight Waterproof	120 V	Plug In	On-Mom	Chassis Mount	20 °
Honeywell Sensing and Productivity Solutions 201LS10		115 V	SPDT (DB/DM)	51 gfm	-29 °C	71 °C	30 °	10 A 800 mA	Side Rotary Adjustable Rod	12 °	20 °	8.64 gfm	IP67 - Dust Tight Waterproof	120 V	Plug In	On-Mom	Chassis Mount	20 °
Honeywell Sensing and Productivity Solutions 201LS2		115 V	SPDT (DB/DM)	51 gfm	-29 °C	71 °C	30 °	10 A 800 mA	Side Rotary - No Lever	12 °	20 °	8.64 gfm	IP67 - Dust Tight Waterproof	120 V	Plug In	On-Mom	Chassis Mount	20 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 387.48

Description

General part information

201LS Series

Switch SPDT (DB/DM) Chassis Mount
