09370160301

Active

HARTING Technology Group

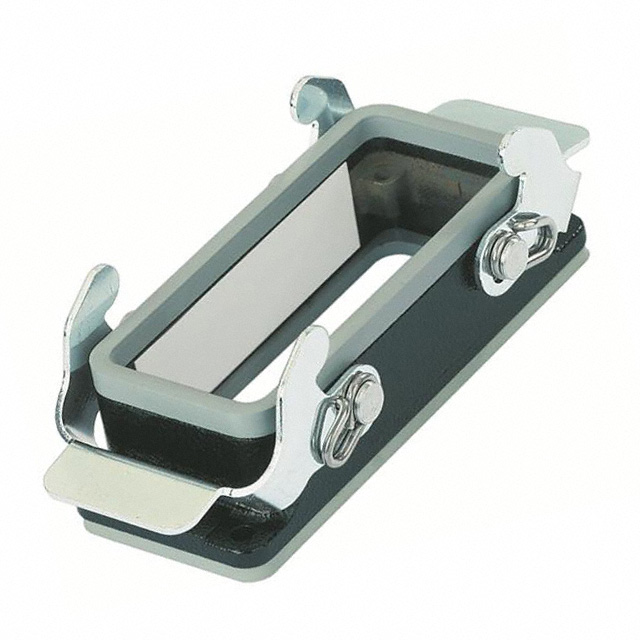

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 16B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09370160301

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 16B

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09370160301

Connector Type	Base - Panel Mount
Housing Color	Black
Housing Finish	Epoxy Powder Paint
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.449 "
Size / Dimension [x]	113 mm
Size / Dimension [y]	1.709 in
Size / Dimension [y]	43.4 mm
Size / Dimension [z]	29.6 mm
Size / Dimension [z]	1.165 in
Style	Bottom Entry

09370160 Series

Part	Lock Location	Style	Connector Type	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size	Ingress Protection	Housing Material	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Features
HARTING Technology Group 09370160581	Locking Clip (1) on Hood	Side Entry	Hood	PG29	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B
HARTING Technology Group 09370160391	Locking Clip (2) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160580	Locking Clip (1) on Hood	Side Entry	Hood	PG21	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B
HARTING Technology Group 09370160398	Locking Clip (1) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160397	Locking Clip (1) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160521	Locking Clip (2) on Base Bottom	Side Entry	Hood	PG29	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160301	Locking Clip (2) on Base Bottom	Bottom Entry	Base - Panel Mount		4.449 "	1.709 in	43.4 mm	113 mm	29.6 mm	1.165 in	16 B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Epoxy Powder Paint	125 °C	-40 °C	Black
HARTING Technology Group 09370160481	Locking Clip (1) on Hood	Top Entry	Hood	PG29	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B
HARTING Technology Group 09370160281	Locking Clip (1) on Hood	Side Entry	Base - Box Mount	PG29	4.606 "	2.244 "	57 mm	117 mm	80.8 mm	3.181 "	16 B							Feed Through
HARTING Technology Group 09370160392	Locking Clip (2) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 164.22
		10	$ 139.60
		25	$ 130.87
		50	$ 125.24
Newark	Each	1	$ 152.37
		5	$ 147.87
		10	$ 143.40

Description

General part information

09370160 Series

Base - Panel Mount Connector Bottom Entry 16B IP65 - Dust Tight, Water Resistant
