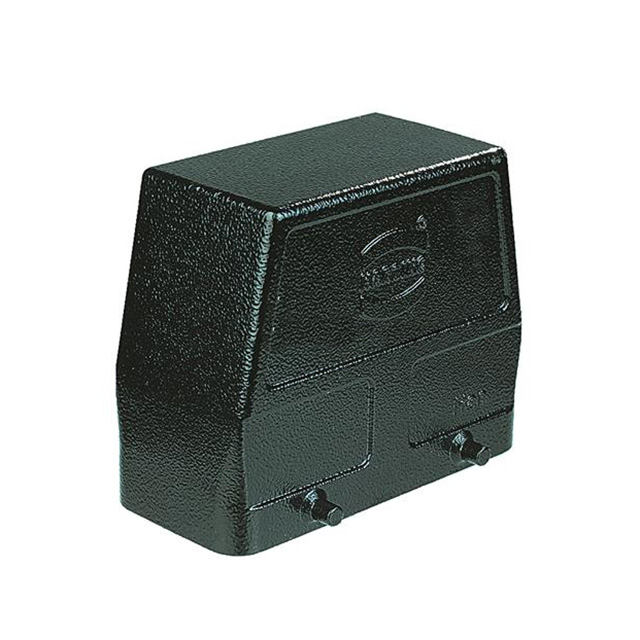

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16B; FOR CABLE; HAN® M; HIGH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09370160521

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16B; FOR CABLE; HAN® M; HIGH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09370160521

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry
Thread Size	PG29

09370160 Series

Part	Lock Location	Style	Connector Type	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size	Ingress Protection	Housing Material	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Features
HARTING Technology Group 09370160581	Locking Clip (1) on Hood	Side Entry	Hood	PG29	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B
HARTING Technology Group 09370160391	Locking Clip (2) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160580	Locking Clip (1) on Hood	Side Entry	Hood	PG21	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B
HARTING Technology Group 09370160398	Locking Clip (1) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160397	Locking Clip (1) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160521	Locking Clip (2) on Base Bottom	Side Entry	Hood	PG29	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
HARTING Technology Group 09370160301	Locking Clip (2) on Base Bottom	Bottom Entry	Base - Panel Mount		4.449 "	1.709 in	43.4 mm	113 mm	29.6 mm	1.165 in	16 B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Epoxy Powder Paint	125 °C	-40 °C	Black
HARTING Technology Group 09370160481	Locking Clip (1) on Hood	Top Entry	Hood	PG29	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	16 B
HARTING Technology Group 09370160281	Locking Clip (1) on Hood	Side Entry	Base - Box Mount	PG29	4.606 "	2.244 "	57 mm	117 mm	80.8 mm	3.181 "	16 B							Feed Through
HARTING Technology Group 09370160392	Locking Clip (2) on Base Bottom	Bottom Entry	Base - Panel Mount								16 B	IP66	Aluminum Die Cast	Powder Coated	125 °C	-40 °C	Black
